800075-S01 Technical Specifications

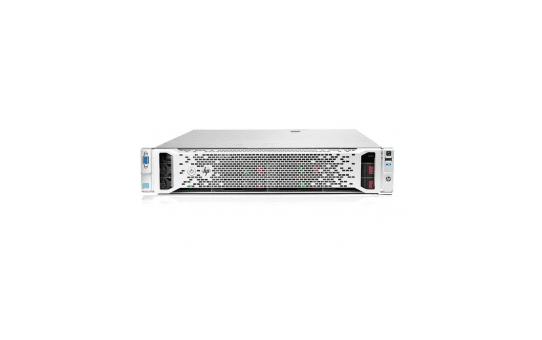

HP Proliant Dl380 G9 S-Buy 1x Intel Xeon Octa-Core E5-2643v3/ 3.4GHz, 32gb(2×16) Ddr4 Sdram, Smart Array P440ar With 2GB Fbwc, 1GB 4-Port 331i Adapter, 2x 500w Rps 2u Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 800075-S01
Product Name: Proliant Dl380 Gen9 – 2u Rack Mount Server(S-Buy)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2643v3/ 3.4ghz
Max Turbo Speed : 3.7 Ghz
Quickpath Interconnect: 9.60 Gt/S
Number Of Cores : Hexa-Core (6 Core)
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 2
Chipset Type : Intel C610 Series
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 20MB
Cache Per Processor : 20MB
MEMORY :
Installed Size : 32gb (2x16gb) Dual Rank X4 / 384 Gb (Max)
Technology : Ddr4 Sdram Pc4-17000r (Ddr4-2133)
Form Factor : Dimm 288-Pin
Total Memory Slots: 24 x DDR4 RAM Slots
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive Type : None.
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array P440ar
Buffer Size : 2 Gb
Disk Drive : 12gb/S Sas / 6gb/S Sata
Sas Port Link Rate : 12gb/S Per Physical Link Supported
Pcie Link Rate : Pci Express 3.0 X8 (Pcie3 X8)
Physical Drives : Up To 26 Drives
Logical Drives Supported : Up To 64 Logical Drives
Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated Matrox G200eh2
Video Memory : 16 Mb
NETWORK & COMMUNICATION:
Ethernet Controller : Hp Ethernet 1gb 4-Port 331i Adapter
Network Processor : Broadcom Bcm5719 Chipset
Ethernet Ports : 4 X Gigabit Ethernetduplex Theoretical Bandwidth
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Integrated Lights-Out 4
Remote Management Controller : Rj-45 (Two)
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION :
Device Type : Flex Slot Platinum Plus Hot-Plug Power Supply
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 100-240v (50/60 Hz)
Power Provided : 500 Watt
