7Y45A02SNA Technical Specifications

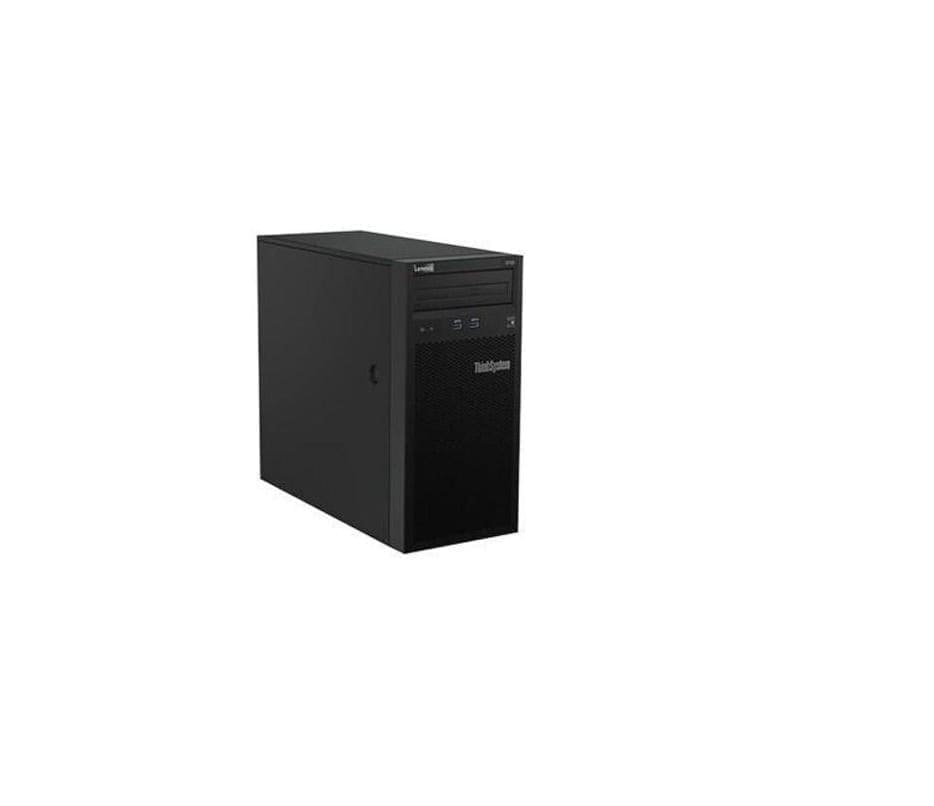

Lenovo Thinksystem ST250 E-2174G 16GB
General Information
Product Name Thinksystem ST250 E-2174G 16GB
Product Line ThinkSystem
Product Series ST250
Product Model 7Y45A02SNA
Product Type Server
Controllers
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 10, 50, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 6
Number of External 5.25″ Bays 2
Number of 3.5″ Bays 4
Hot Swappable Bays Yes
Memory
Standard Memory 16 GB
Maximum Memory 64 GB
Memory Technology TruDDR4
Number of Total Memory Slots 4
Number of Occupied Memory Slots 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 550 W
Storage
Total Solid State Drive Capacity 960 GB
Solid State Drive Interface Serial ATA/600
Solid State Drive Configuration 2 x 480 GB
Optical Drive Type No
Processor & Chipset
Number of Processors Supported 1
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E-2174G
Processor Core Quad-core (4 Core)
Processor Speed 3.80 GHz
Software
Operating System Windows Server 2019 Standard
Physical Characteristics
Form Factor Tower
Rack Height 4U
Height 16.9″
Width 6.9″
Depth 22.3″
