7Y37A01086 Technical Specifications

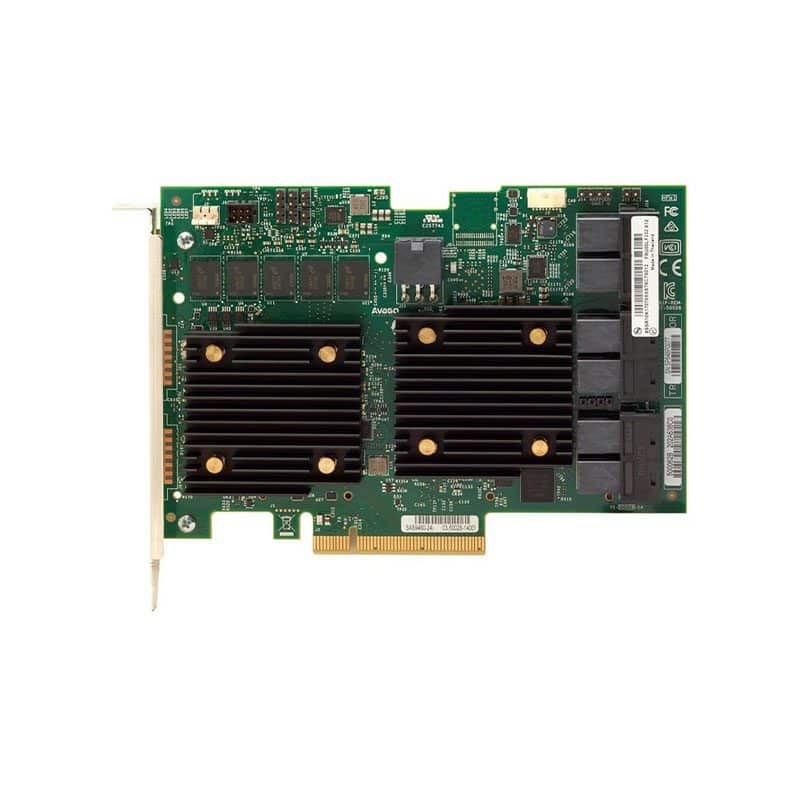

Lenovo 930-24i 4GB Cache 24-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 FH-HL RAID 0/1/5/6/10/50/60/JBOD Controller Card for ThinkSystem
Manufacturer Part Number: 7Y37A01086
Brand Name: Lenovo
Product Type: SAS Controller
Technical Information
Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 10, 5, 50, 6, 60
JBOD
Data Backup Type: Flash Backed Cache
Memory
Cache Memory: 4 GB
Interfaces/Ports
Total Number of SAS Ports: 24
SAS Connector Details: 6 SFF-8643
Physical Characteristics
Form Factor: Plug-in Card
Miscellaneous
Platform Supported: PC, Linux
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
