7Y37A01084 Technical Specifications

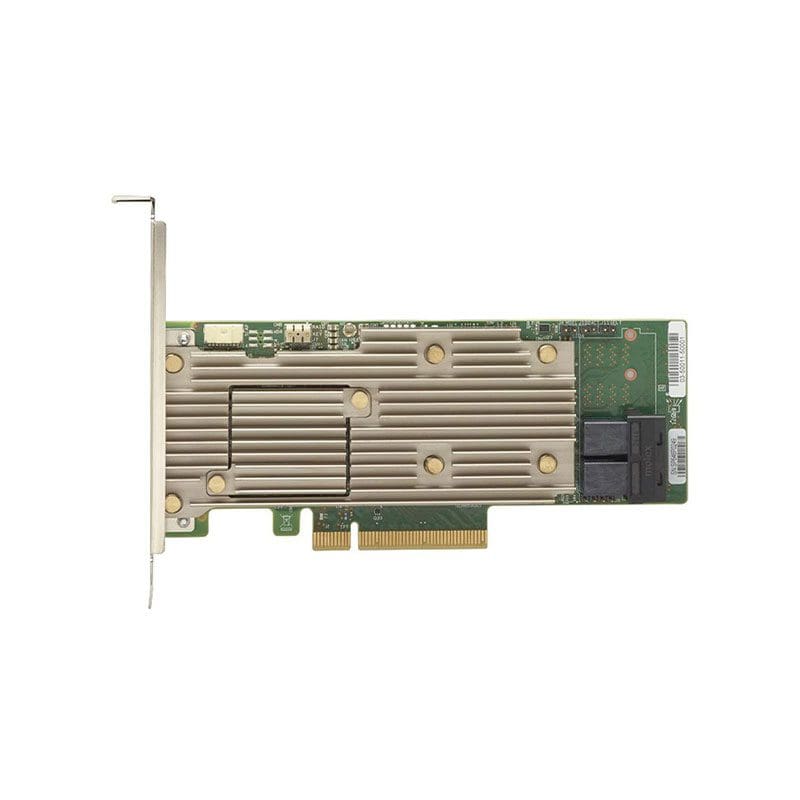

Lenovo 930-8i 8-Port 2GB Cache SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile RAID 0/1/5/6/10/50/60/JBOD Controller Card for ThinkSystem
Manufacturer Part Number 7Y37A01084
Brand Name Lenovo
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
10
5
50
6
60
JBOD
Data Backup Type Flash Backed Cache
Memory
Cache Memory 2 GB
Interfaces/Ports
Total Number of SAS Ports 8
SAS Connector Details 2 SFF-8643
Physical Characteristics
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Linux
Environmentally Friendly Yes
Environmental Certification RoHS
WEEE
