7Y03A00GNA Technical Specifications

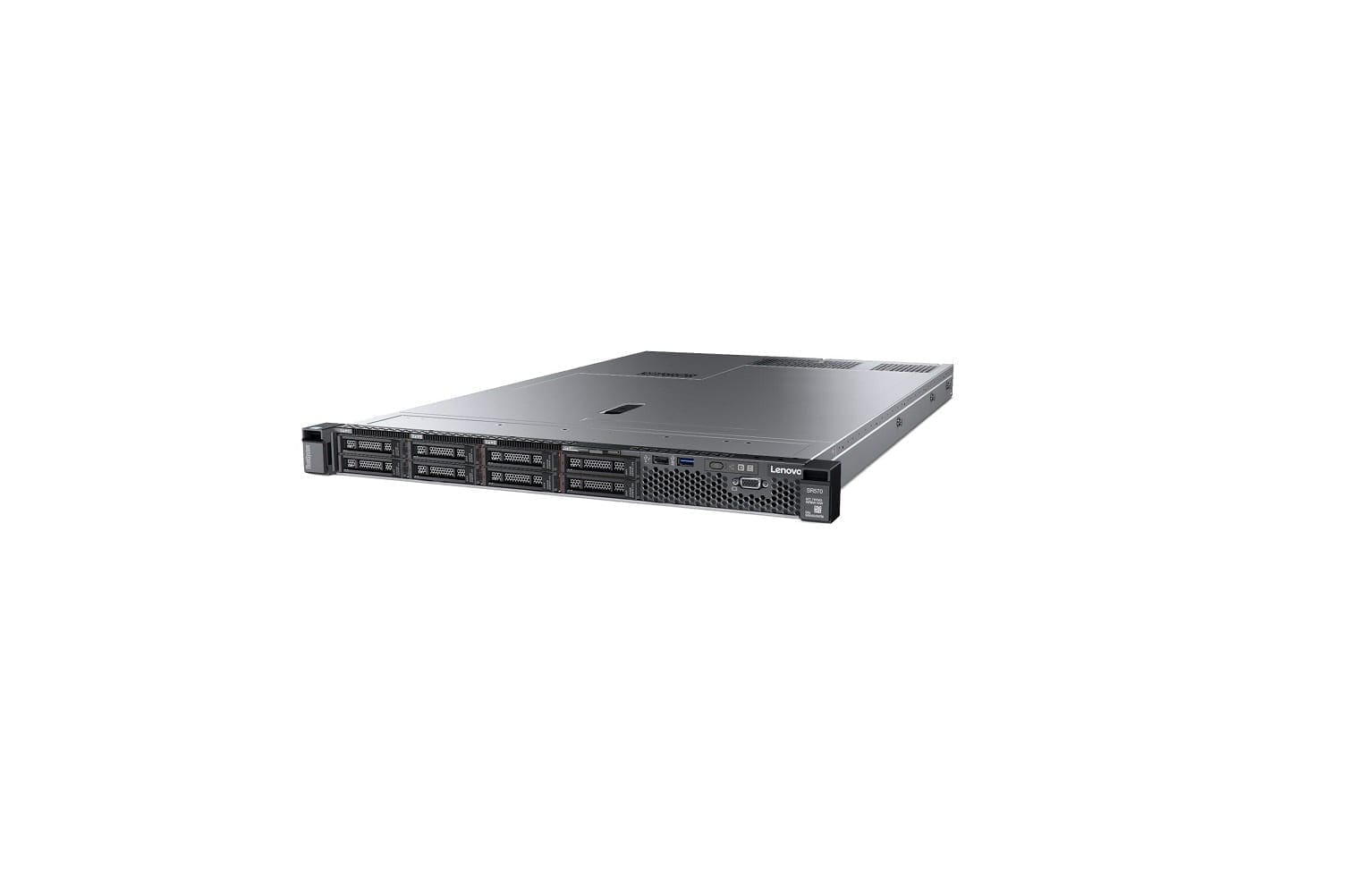

Lenovo Thinksystem SR570 Server Intel Xeon
General Information
Product Name Thinksystem SR570 Server Intel Xeon Silver 4114 10C 2.2G 64GB 750W
Product Line ThinkSystem
Product Series SR570
Product Model 7Y03A00GNA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported No
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 10
Number of Internal 2.5″ Bays 10
Hot Swappable Bays Yes
Memory
Standard Memory 64 GB
Maximum Memory 512 GB
Memory Technology TruDDR4
Number of Total Memory Slots 16
Number of Occupied Memory Slots 2
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 750 W
Redundant Power Supply Yes
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Silver
Processor Model 4114
Processor Core Deca-core (10 Core)
Processor Speed 2.20 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 1.7″
Width 17.1″
Depth 28.1″
