7X99A02KNA Technical Specifications

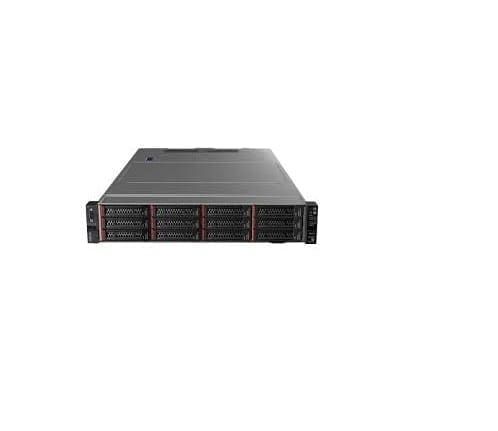

Lenovo Thinksystem SR590 Server 6142 32G
General Information
Product Name Thinksystem SR590 Server 6142 32G
Product Line ThinkSystem
Product Series SR590
Product Model 7X99A02KNA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Memory
Standard Memory 32 GB
Memory Technology TruDDR4
Number of Total Memory Slots 16
Number of Occupied Memory Slots 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 750 W
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 6142
Processor Core Hexadeca-core (16 Core)
Processor Speed 2.60 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 2U
Height 3.4″
Width 17.5″
Depth 28.3″
