7X99A01MNA Technical Specifications

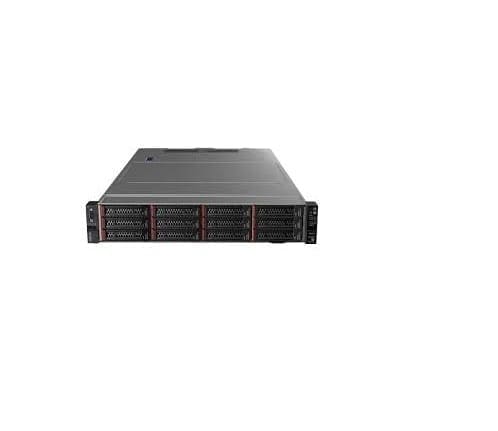

Lenovo ThinkSystem SR590 7X99A01MNA Rack Server
General Information−
Manufacturer Part Number 7X99A01MNA
Brand Name Lenovo
Product Line ThinkSystem
Product Series SR590
Product Model 7X99A01MNA
Product Name ThinkSystem SR590 7X99A01MNA Server
Product Type Server
Technical Information−
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 5120
Processor Core Tetradeca-core (14 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 16 GB
Memory Technology TruDDR4
Number of Total Memory Slots 16
Number of Occupied Memory Slots 1
Storage
Total Hard Drive Capacity No
Controllers
Controller Type 12Gb/s SAS, Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Software
Operating System No
Power Description
Input Voltage 120 V AC, 230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 750 W
Physical Characteristics
Form Factor Rack
Rack Height 2U
Height 3.4″
Width 17.5″
Depth 28.3″
Weight (Approximate) 57.32 lb
