7X77A01302-AM Technical Specifications

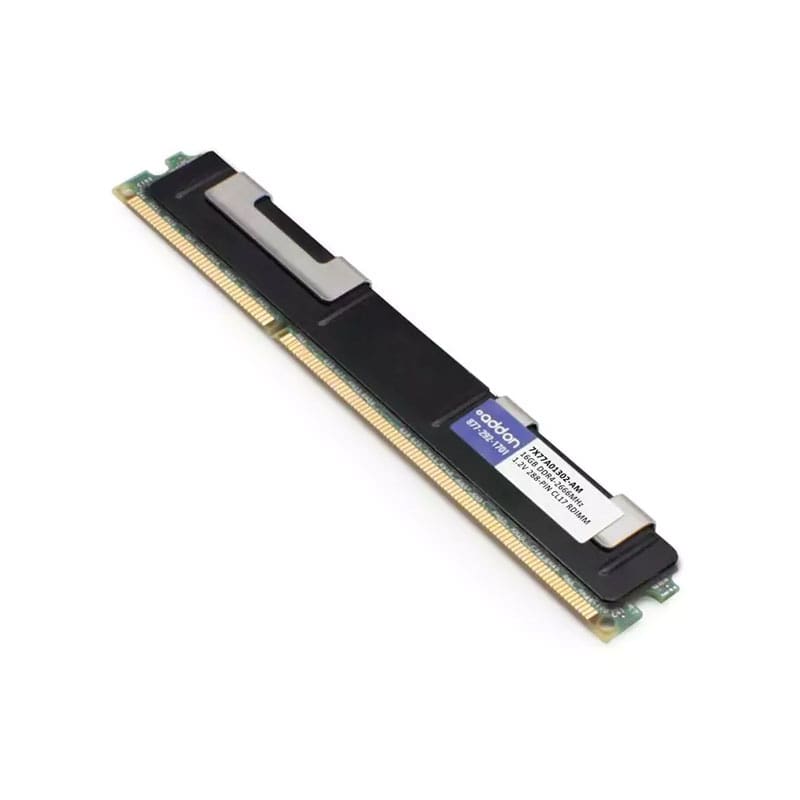

AddOn 16GB DDR4 SDRAM Memory Module
Manufacturer: AddOn
Brand Name: AddOn
Product Name: 16GB DDR4 SDRAM Memory Module
Packaged Quantity: 1
Product Type: RAM Module
RAM / Data Integrity Check: ECC
RAM / Memory Specification Compliance: PC4-21300
RAM / Memory Speed: 2666 MHz
RAM / Registered or Buffered: Registered
RAM / Technology: DDR4 SDRAM
RAM / Type: DRAM
RAM / Upgrade Type: System specific
Capacity: 16 GB
Chips Organization: X4
Features: Single rank, registered
Latency Timings: CL17
Voltage: 1.2 V
Number of Pins: 288-pin
Form Factor: DIMM
