7X19A00UNA Technical Specifications

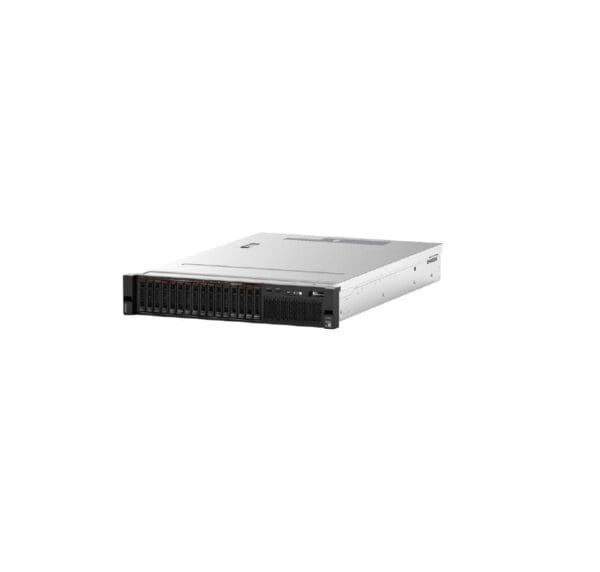

Lenovo ThinkSystem SR850 7X19A00UNA
General Information−
Manufacturer Lenovo Group Limited
Manufacturer Part Number 7X19A00UNA
Brand Name Lenovo
Product Line ThinkSystem
Product Series SR850
Product Model 7X19A00UNA
Product Name ThinkSystem SR850
Product Type Server
Technical Information−
Processor & Chipset
Number of Processors Supported 4
Number of Processors Installed 4
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 6138
Processor Core Icosa-core (20 Core)
Processor Speed 2 GHz
Memory
Standard Memory 128 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 48
Number of Occupied Memory Slots 4
Storage
Total Hard Drive Capacity No
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Network & Communication
Ethernet Technology Ethernet
Software
Operating System No
Power Description
Input Voltage 120 V AC, 230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1100 W
Redundant Power Supply Yes
Physical Characteristics
Form Factor Rack
Rack Height 2U
Height 3.4″
Width 19″
Depth 30.1″
Weight (Approximate) 59.52 lb
Miscellaneous
Energy Star Yes
Environmentally Friendly Yes
Environmental Certification ENERGY STAR 2.1
