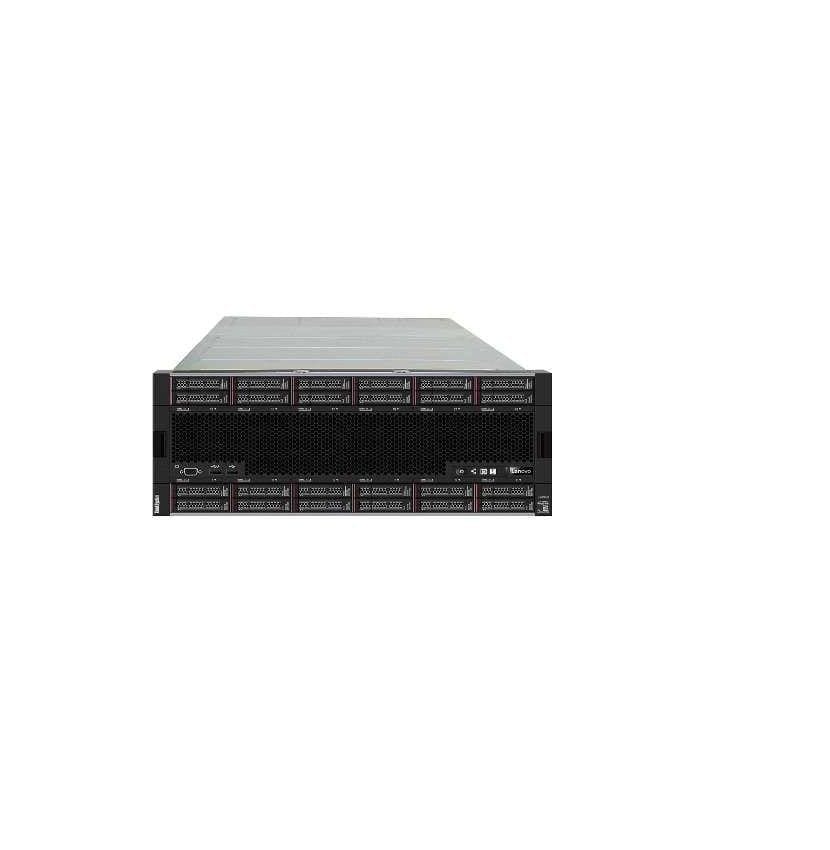

7X12A01SNA Technical Specifications
Lenovo Thinksystem SR950 8160X8 32GX8
General Information
Product Name Thinksystem SR950 8160X8 32GX8
Product Line ThinkSystem
Product Series SR950
Product Model 7X12A01SNA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 24
Number of Internal 2.5″ Bays 24
Hot Swappable Bays Yes
Memory
Standard Memory 256 GB
Maximum Memory 3 TB
Memory Technology TruDDR4
Number of Total Memory Slots 96
Number of Occupied Memory Slots 8
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 230 V AC
Number of Power Supplies Supported 4
Number of Power Supplies Installed 4
Maximum Power Supply Wattage 1600 W
Redundant Power Supply Yes
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 8
Number of Processors Installed 8
Processor Manufacturer Intel
Processor Type Xeon Platinum
Processor Model 8160
Processor Core Tetracosa-core (24 Core)
Processor Speed 2.10 GHz
