7X12A01MNA Technical Specifications

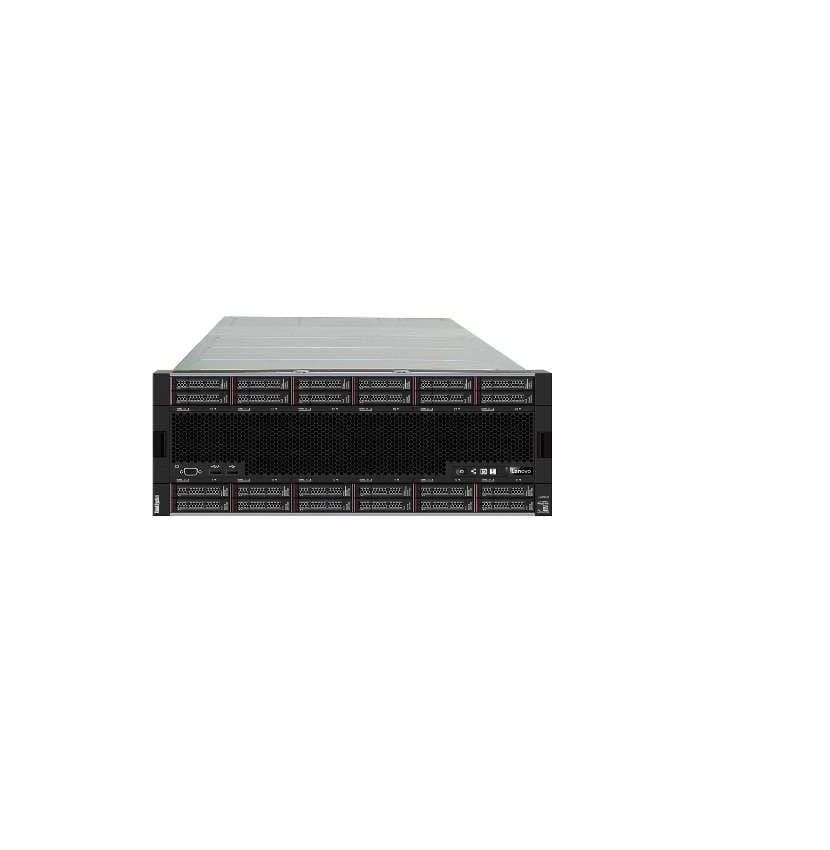

Lenovo Thinksystem SR950 8153X4 32GX4
General Information
Product Name Thinksystem SR950 8153X4 32GX4
Product Line ThinkSystem
Product Series SR950
Product Model 7X12A01MNA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Memory
Standard Memory 128 GB
Maximum Memory 3 TB
Memory Technology TruDDR4
Number of Total Memory Slots 96
Number of Occupied Memory Slots 4
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 230 V AC
Number of Power Supplies Supported 4
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1600 W
Redundant Power Supply Yes
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 8
Number of Processors Installed 4
Processor Manufacturer Intel
Processor Type Xeon Platinum
Processor Model 8153
Processor Core Hexadeca-core (16 Core)
Processor Speed 2 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 4U
Height 6.8″
Width 19″
Depth 32.9″
