7X06A0K7EA Technical Specification

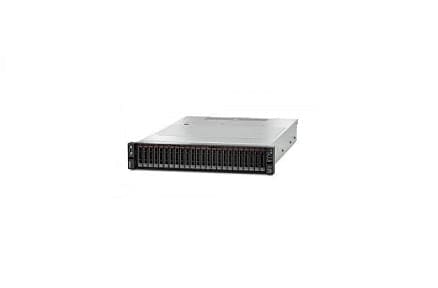

Lenovo ThinkSystem SR650 Server
Type: Server
Product Form Factor: Rack-mountable – 2U
Embedded Security: Trusted Platform Module (TPM 1.2 and TPM 2.0)
Server Scalability2-way
Localisation Region: EMEA
Processor / Chipset
CPU Intel® Xeon® Gold 6226R / 2.9 GHz
Max Turbo Speed: 3.9 GHz
Number of Cores: 16-core
CPU Qty: 1
Max CPU Qty: 2
Chipset Type: Intel® C624
Cache Memory
Installed Size: 22 MB
Cache Per Processor: 22 MB
RAM
Installed Size: 32 GB / 768 GB (max)
Technology: DDR4 SDRAM – ECC Chipkill
Effective Memory Speed: 2933 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots:L 24 (Total) / 23 (empty)
Configuration Features1 x 32 GB
RAM Supported: 768 GB registered
1.5 TB Load-Reduced
3 TB 3DS registered
Hard Drive Type: No HDD
Optical Storage Type: No optical drive
Monitor
Monitor Type: None.
Graphics Controller
Graphics Processor: Matrox G200
Video Memory: 16 MB
Video Interfaces: VGA
