7X06A0JVEA Technical Specification

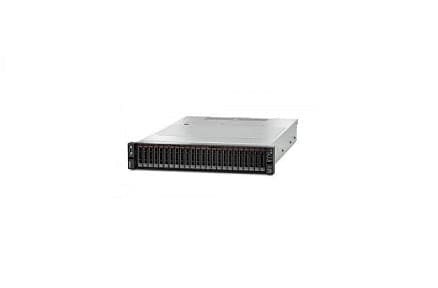

Lenovo DCG ThinkSystem SR650 Server
Type: server
Form factor of the product: Rack mount – 2U
Integrated security
Trusted Platform Module (TPM 1.2 and TPM 2.0)
Server scalability: Two-way
Localization: Region: EMEA
Processor / chipset
CPU
Intel Xeon Gold 6246R / 3.4 GHz
Max. Turbo clock frequency: 4.1 GHz
Number the kernels: 16 cores
Number of processors: 1
Max. Number of processors: 2
Most important processor features
Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2
Chipset: Intel C624
Cache memory
Installed size: 35.75 MB
Cache per processor: 35.75 MB
R.A.M.
Installed number
32 GB / 768 GB (max)
technology
DDR4 SDRAM – ECC Chipkill
Effective storage speed: 2933 MHz
Rated memory speed: 2933 MHz
Form factor: DIMM 288-PIN
slot: 24 (total) / 23 (free)
Performance characteristics
Configuration features: 1 x 32 GB
Supported RAM
768 GB registered ¦ 1.5 TB load-reduced ¦ 3 TB 3DS registered
Hard disk drive Type: No HDD
Optical storage Type: No optical drive
monitor
Monitor type: None.
Graphics controller
Graphics processor
Matrox G200
Video memory: 16 MB
Video interfaces: VGA
network
Remote management controller
XClarity Controller (XCC) Enterprise
