7X06A0JMEA Technical Specification

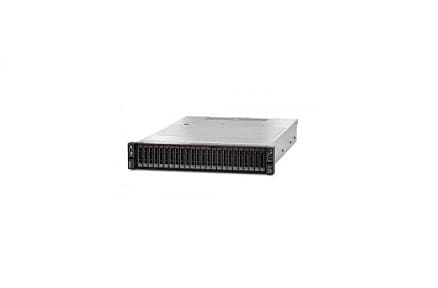

Lenovo DCG ThinkSystem SR650 Server
processor manufacturer: Intel
Processor family: Intel® Xeon® Gold
processor: 6240R
Processor clock frequency: 2.4 GHz
Processor boost frequency: 4 GHz
number of CPU cores: 24
Processor cache: 35.75 MB
Motherboard chipset: Intel® C624
Number of installed processors: 1
Thermal Design Power (TDP): 165 W
Maximum number of SMP processors: 2
Processor socket: LGA 3647 (Socket P)
Processor lithography: 14 nm
Processor threads: 48
Processor operating modes: 64-bit
Processor code name: Cascade Lake
Tcase: 90 ° C
Maximum internal memory supported by the processor: 1024 GB
Memory types supported by the processor: DDR4 SDRAM
Memory clock rates supported by the processor: 2933 MHz
Execute Disable Bit: Yes
Maximum number of PCI Express lanes: 48
Processor packet size: 76.0 x 56.5 mm
Supported instruction sets: SSE4.2, AVX, AVX 2.0, AVX-512
Scalability: 2S
Embedded options available: No
Storage
RAM: 32 GB
Internal storage type: DDR4 SDRAM
Memory slots: 24 x DIMM
Memory clock frequency: 2933 MHz
Storage layout: 1 x 32 GB
RAM memory maximum: 7500 GB
design
Housing type: Rack (2U)
Product color: Black, stainless steel
Rack mounting: Yes
power
Support for redundant power supply: Yes
Power supply: 750 W
Number of redundant power supplies supported: 2
Number of redundant power supplies installed: 1
Power supply – input frequency: 50-60 Hz
Storage medium
Max. Storage capacity: 400 TB
HDD interface: Serial ATA, Serial Attached SCSI (SAS)
SSD interface: NVMe, PCI Express
