7X06A0FCNA Technical Specifications

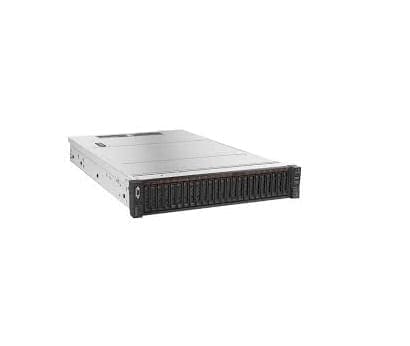

Lenovo ThinkSystem SR650 – rack-mountable
Processor
Clock Speed :2.4 GHz
Installed Qty :1
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.9 GHz
Number of Cores :24-core
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Virtualization Technology
Processor Number :8260
Server Scalability :2-way
Type :Xeon Platinum
Audio Input
Type :None
Bay Provided
Form Factor :2.5″ SFF
Free Qty :8
Total Qty :8
Cache Memory
Installed Size :36 MB
Installed Size :36
Per Processor Size :36 MB
Per Processor Size :36
Display
Type :None.
Header
Brand :Lenovo
Country Kits :North America
Manufacturer :Lenovo System X
Model :7X06
Packaged Quantity :1
Product Line :Lenovo ThinkSystem SR650
Interface Provided
Connector Type :RJ-45
Qty :1
Type :Management
Location :1 front, 2 rear
Qty :3
Type :USB 3.0
Location :1 in front
Type :USB 2.0
Location :1 rear
Type :VGA
Mainboard
Chipset Type :Intel C624
Miscellaneous
Color Category :Black
Compliant Standards :AS/NZS CISPR 22, BSMI CNS 13438 Class A, BSMI CNS 14336-1, CB, EK1-ITB2000, EN 60950-1, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 A, GB 17625.1, GB 4943.1, GB 9254 Class A, GOST ME01, GOST-R 51317.3.2, GOST-R 51317.3.3, GOST-R 51318.22, GOST-R 51318.24, ICES-003 Class A, IEC60950-1, KN22 Class A, KN24, NMB-3 Class A, NOM-019, RoHS, TUV GS, UL/CSA60950-1, VCCI Class A
Height (Rack Units) :2
Networking
Remote Management Controller :XClarity Controller (XCC) Enterprise
OS Provided
Type :No operating system
Power Device
80 PLUS Certification :80 PLUS Platinum
Frequency Required :50/60 Hz
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :1100 Watt
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply – hot-plug
