7X06A0B0EA Technical Specification

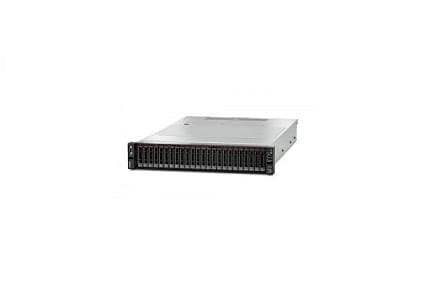

Lenovo ThinkSystem SR650 Server
Type: Server
Form factor: for product Can be mounted in rack – 2U
Embedded Security Trusted: Platform Module (TPM 1.2 and TPM 2.0)
Server scalability: 2-way
Number of compartments for hot-swap: 8
Location Region: EMEA
Processor / Chip Set
CPU: Intel Xeon Silver 4210 / 2.2 GHz
Max. turbo speed 3.2 GHz
Number of cores: 10-core
Number of CPUs: 1
Max. CPU number: 2
Circuit type Intel: C624
Cache memory
Installed size: 13.75 MB
Cache / processor: 13.75 MB
FRAME
Installed size: 32 GB / 768 GB (max)
Technique: DDR4 SDRAM – ECC
Efficient memory speed: 2400 MHz
Memory speed: 2666 MHz
Form factor DIMM: 288-pin
Card slots: 24 (Total) / 23 (empty)
Configuration properties: 1 x 32 GB
RAM support: 768 GB registered
