7X06A0ASEA Technical Specification

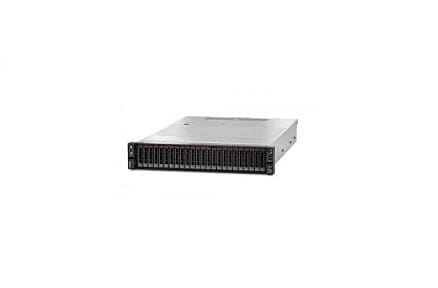

Lenovo ThinkSystem SR650 Server
Processor frequency: 2.3 GHz
Processor family: Intel Xeon Gold
Processor model: 5218
Processor cores: 16
Number of processors installed: 1
Processor cache: 22 MB
Embedded options available: N
Execute Disable Bit: Y
Maximum number of PCI Express lanes: 48
Processor boost frequency: 3.9 GHz
Processor codename: Cascade Lake
Processor lithography: 14 nm
Processor manufacturer: Intel
Processor operating modes: 64-bit
Processor package size: 76.0 x 56.5 mm
Processor socket: LGA 3647 (Socket P)
Processor threads: 32
Scalability: 4S
Supported instruction sets: AVX-512
Tcase: 87 °C
Thermal Design Power (TDP): 125 W
Memory
Internal memory: 32 GB
Internal memory type: DDR4-SDRAM
Memory clock speed: 2666 MHz
Memory layout (slots x size): 1 x 32 GB
Storage
RAID support: Y
RAID levels: 0,1,5,6,10,50,60
