7X02A01MNA Technical Specifications

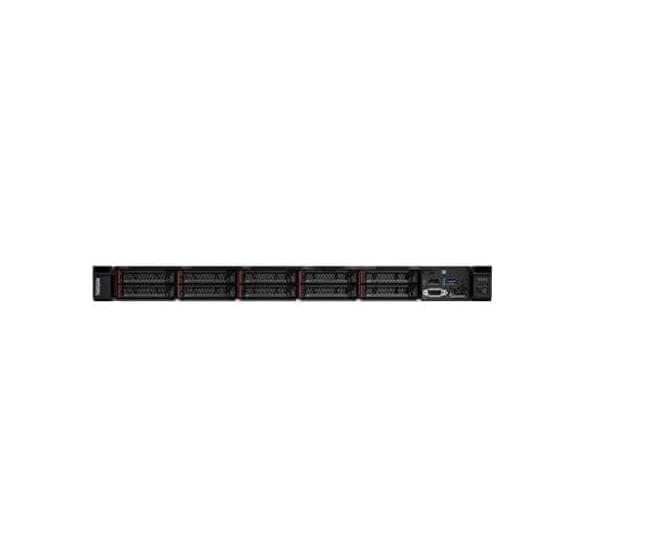

Lenovo Thinksystem SR630 8160X1 32GX1
General Information
Product Name Thinksystem SR630 8160X1 32GX1
Product Line ThinkSystem
Product Series SR630
Product Model 7X02A03BNA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Memory
Standard Memory 32 GB
Memory Technology TruDDR4
Number of Total Memory Slots 24
Number of Occupied Memory Slots 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 750 W
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Platinum
Processor Model 8160
Processor Core Tetracosa-core (24 Core)
Processor Speed 2.10 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 1.7″
Width 17.1″
Depth 28.1″
