7X02A01LNA Technical Specifications

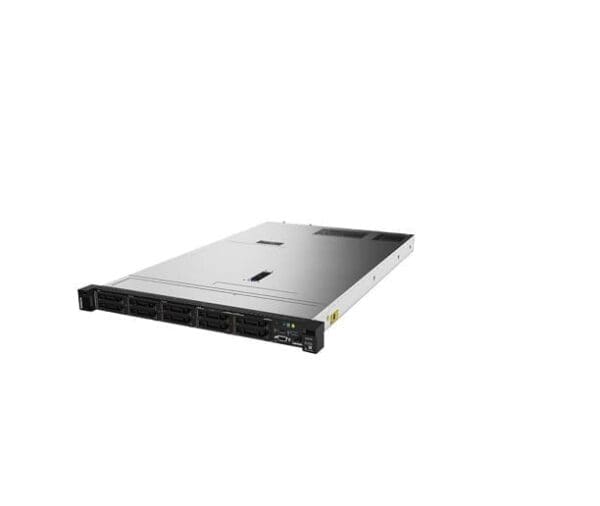

Lenovo Thinksystem SR630,1XXEON
General Information
Product Name Thinksystem SR630,1XXEON Gold 5115 10C/2.4GHZ/13.75MB/85w/DDR4-2400,1X16GB
Product Line ThinkSystem
Product Series SR630
Product Model 7X02A01LNA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Memory
Standard Memory 16 GB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24
Number of Occupied Memory Slots 1
Network & Communication
Ethernet Technology No
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 750 W
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 5115
Processor Core Deca-core (10 Core)
Processor Speed 2.40 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 1.7″
Width 19″
Depth 30.6″
