7915EKU Technical Specifications

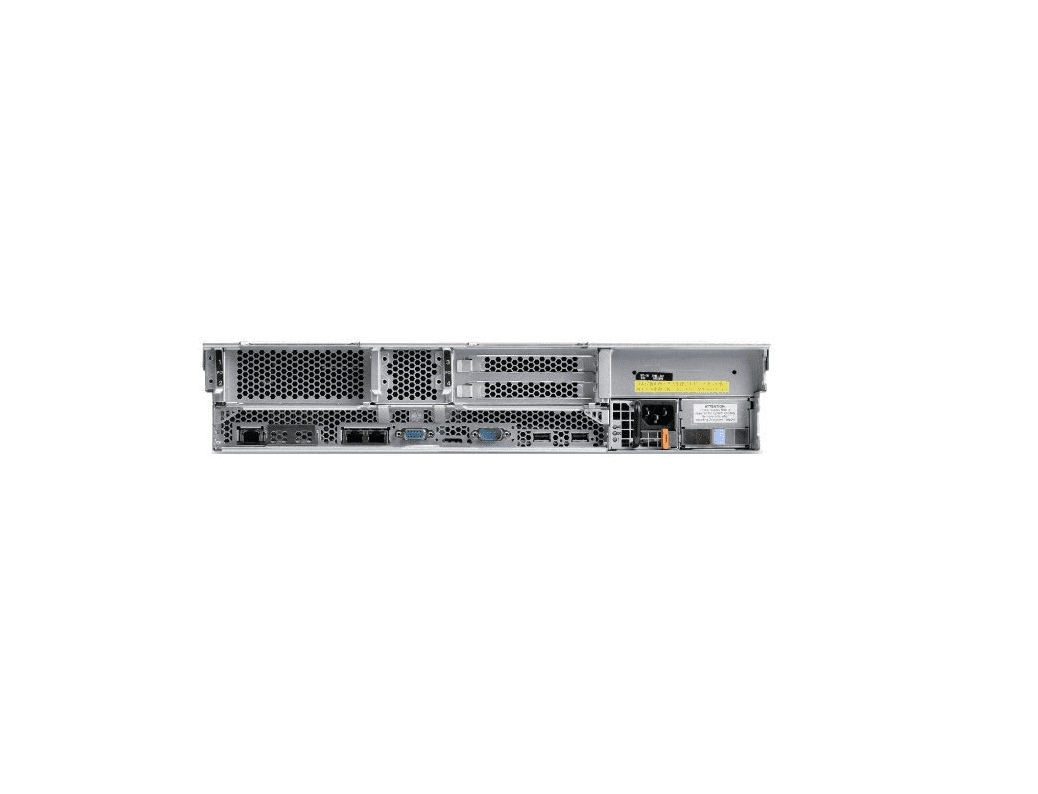

IBM System X3650 M4 1x Intel Xeon 10 Core E5 2670v2 2.5GHZ 25MB L3 Cache 16GB DDR3 RAM Dvd Writer 4x Gigabit Ethernet 2u Rack Server.
General Information
Manufacturer IBM Corporation
Manufacturer Part Number 7915EKU
Brand Name IBM
Product Line System x
Product Series x3650 M4
Product Model 7915EKU
Product Name System x3650 M4 7915EKU Server
Product Type Server
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2670 v2
Processor Core Deca-core (10 Core)
Processor Speed 2.50 GHz
Maximum Turbo Speed 3.30 GHz
Cache 25 MB
QuickPath Interconnect 8 GT/s
64-bit Processing Yes
Hyper-Threading Yes
Chipset Manufacturer Intel
Chipset Model C602J
Memory
Standard Memory 16 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1866/PC3-14900
Number of Total Memory Slots 24
Storage
Number of Hard Drives No
Optical Drive Type DVD-Writer
Optical Media Supported DVD-RAM/±R/±RW
Dual-Layer Media Supported Yes
Controllers
Controller Type 6Gb/s SAS
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 1+0
I/O Expansions
Number of Total Expansion Bays 17
Number of External 5.25″ Bays 1
Number of Internal 2.5″ Bays 16
Number of Total Expansion Slots 3
Number of PCI Express x8 Slots 3
Display ≈ Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200eR2
Graphics Memory Capacity Up to 16 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 8
Number of USB 2.0 Ports 6
Network (RJ-45) Yes
VGA Yes
Remote Management Yes
Software
Operating System No
Power Description
Input Voltage 220 V AC
Input Voltage 110 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 750 W
