7915EHU Technical Specifications

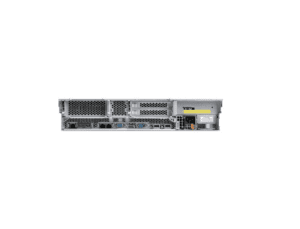

IBM System X3650 M4 1x Xeon 6-Core E5-2640v2/2.0ghz 20MB L3 Cache 8gb Ddr3 Sdram 4x Gigabit Ethernet, 1x 550w Ps, 2u Rack Server.
GENERAL INFORMATION :
Manufacturer: IBM Corporation
Manufacturer Part Number: 7915EHU
Manufacturer Website Address: www.ibm.com
Product Name: System X3650 M4 2u Rack Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2640v2/2.0ghz
Max Turbo Speed : 2.5 Ghz
Multi-Core Technology : 8-Core (Octa-Core)
Cpu Socket : Lga2011 Socket
64-Bit Computing : Yes
Installed Qty :
Max Supported Qty : 2
Bios Type : Flash
Upgradability : Upgradable
Processor Main Features : Intel Turbo Boost Technology 2
Chipset Type : Intel C602j
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 20 Mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 8 Gb
Maximum Size : 768 Gb
Technology : Ddr3 Sdram – Ecc Chipkill
Memory Speed : 1600 Mhz
Form Factor : Dimm 240-Pin
Configuration Features : 1 X 8 Gb
Number Of Memory Slots : 24 Slots
STORAGE & STORAGE CONTROLLER :
Hard Drive : No Hdd,
Optical Storage Type : Dvd-Writer
Storage Controller Type : 1 X Sas – Integrated
Controller Interface Type : Sata 6gb/S / Sas 6gb/S
Storage Controller Name : Serveraid M5110e
Raid Level : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox Mga G200er2
Video Memory : 16 Mb
