789883-001 Technical Specifications

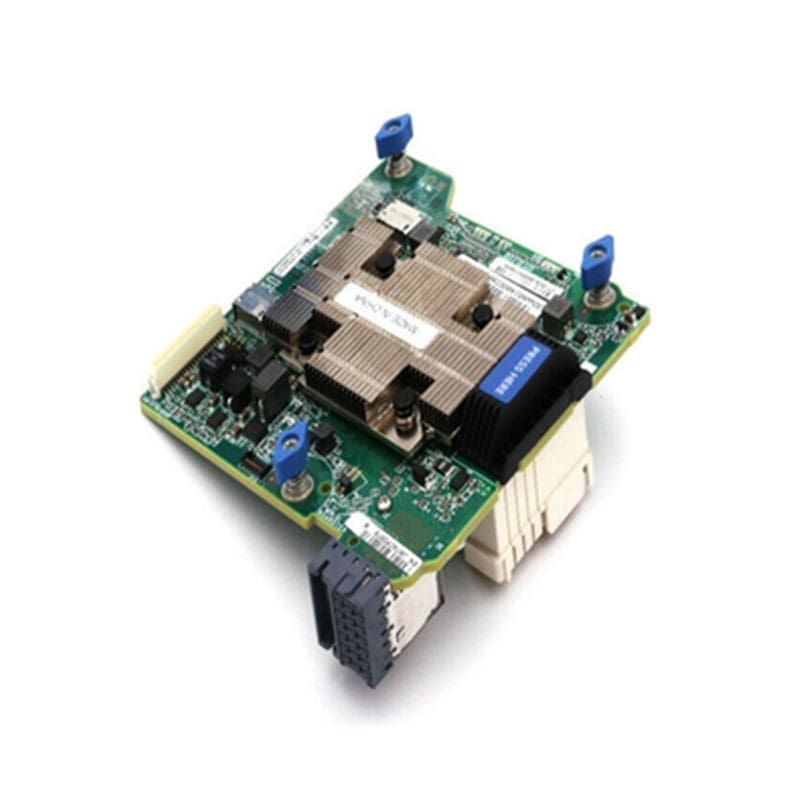

HPE Smart Array 2GB FBWC 12GB SAS Controller
Brand Name: HPE
Model Number or SKU# 789883-001
Device Type: Storage controller plug in card
Host Bus: PCIE 3.0 x8
Form Factor: Mezzanine Card
Supported Disk Enclosure: HPE Synergy D3940 Storage Modules
Storage Controller
Controller Model: P542D
Cache (Buffer): 2 GB Flash-Backed Write Cache (FBWC)
Data Backup Type: Flash Backed Cache
Data Transfer Rate: 12Gb/s SAS per Physical Link, 6Gb/s SATA per Physical Link (PCI Express Gen3 x8 Link Width)
Maximum LUNs: 64
RAID Supported: Yes
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Additional Features: HPE SmartCache (Optional License), HPE Secure Encryption (Optional License)
Supported Devices: Hard Drive, Disk Array (RAID)
