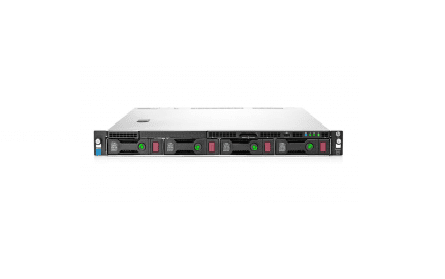

Refurbished 788090-S01 Technical Specifications
HP Proliant Dl120 G9 S-Buy (Lff) 1x Intel Xeon 6-Core E5-2609v3/ 1.9GHz, 8GB Ddr4 Sdram, Smart Array B140i Without Fbwc, 1GB 2-Port 361i Ethernet Adapter, 1x 550w Ps 1u Rack Server.
General Information :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 788090-S01
Product Name: Proliant Dl120 Gen9 – 1u Rack Mount (S-Buy)
Processor & Chipset :
Processor Type : Intel Xeon E5-2609v3/ 1.9ghz
Quickpath Interconnect : 6.4 Gt/S
Number Of Cores : 6 Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 1
Chipset Type : Intel C610 Series
Cache Memory :
Cache Memory Type : Smart Cache
Installed Size : 15mb
Cache Per Processor : 15 Mb
Memory :
Installed Size : 8gb (1x8gb) / 128 Gb (Max)
Technology : Ddr4 Sdram Pc4-17000r (Ddr4-1600)
Form Factor : Dimm 288-Pin
Total Memory Slots : 8 Ddr4 Slots
Ram Supported : 128 Gb – Registered, 256 Gb – Load-Reduced
Storage:
Hard Drive : None
Optical Drive : None
Storage Controllers:
Storage Controller Name : Smart Array B140i
Buffer Size : None
Disk Drive : Up To 6gb/S Sata (Serial Ata)
Connectors : 10 Internal Sata Connectors
Server Interface : X4 Pcie 2.0
Sata Speed : 6gb/S Sata Links
Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)
Host Memory Addressing : 64-Bit, Supporting Greater Than 4gb Server Memory Space
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Graphics Controllers :
Type : Integrated
Graphics Processor : Matrox G200eh2
Video Interfaces : Vga
Network & Communication:
Ethernet Controller : Hp Ethernet 1gb 2-Port 361i Adapter
Network Interface : 10base-T/100base-Tx/1000base-Tx
Ethernet Controller : I350 Powerville
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Connector : Rj-45 (Two)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az
Power Description :
Device Type : Flex Slot Platinum Plus Power Supply
Installed Qty : 1
Nominal Voltage : Ac 120/230v (50/60 Hz)
Power Provided : 550 Watt
Expansion / Connectivity :
Expansion Bays Total (Free) :
1 (Total) / 1 (Free) X External 5.25
4 (Total) / 4 (Free) X Hot-Swap 3.5 Lff
Expansion Slots Total (Free) :
1 (Total) / 0 (Free) X Cpu
8 (Total) / 7 (Free) X Dimm 288-Pin
1 (Total) / 1 (Free) X Pcie 3.0 X16 – Low-Profile ( X16 Mode )
1 (Total) / 1 (Free) X Microsd Card (Internal)
Interfaces & Ports :
1 X Vga
1 X Usb 2.0 ( 1 Front )
3 X Usb 3.0 ( 2 Rear, 1 Internal )
2 X Lan (Gigabit Ethernet)
1 X Hp Ilo
Dimensions & Weight :
Depth : 23.9 Inch
Width : 17.1 Inch
Height : 1.7 Inch
