Refurbished 783360-S01 Technical Specifications

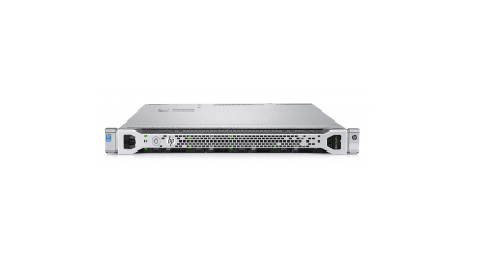

HP Proliant DL160 G9 S-Buy 2X Xeon 8-Core E5-2640-V3 / 2.6GHz, 32GB DDR4 SDRAM, 2X Gigabit Ethernet, 800W PS, 1U Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 783360-S01
Product Name : Proliant DL160 Gen9 1U Rack Mount S-Buy
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2640-V3 / 2.6GHz
Number Of Cores : Octa-Core (8 Core)
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C610
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 40 MB
Cache Per Processor : 20 MB
MEMORY :
Installed Size : 32 GB
Maximum Size : 512 GB
Technology : DDR4 SDRAM
Memory Speed : 2133 MHZ
Memory Specification Compliance : PC4-17000
Form Factor : DIMM 288-PIN
Memory Slots: 16 x DDR4 RAM Slots
Features : Registered, Hp Smart Memory, Quad Channel Memory Architecture
Configuration Features : 2 X 16 GB
Ram Supported : PC4-17000 – 256 GB – Registered, PC4-17000 – 512 GB – Load-Reduced
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Storage Controller Type : 1 X RAID – PLUG-IN CARD – PCI EXPRESS 3.0 X8
Controller Interface Type : 12GB/S SAS
Storage Controller Name : Smart Array P440 With 4gb Fbwc
Buffer Size : 4 GB
Raid Level : RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : MATROX G200EH2
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Interface (Bus) Type : PCI EXPRESS 2.0 X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller(S) : HP NC361I
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ
EXPANSIONS & CONNECTIVITY :
Expansion bays total (free) :
1 (TOTAL) / 1 (FREE) X FRONT ACCESSIBLE – 5.25IN SLIM LINE
8 (TOTAL) / 8 (FREE) X HOT-SWAP – 2.5IN SFF
EXPANSION SLOTS TOTAL (FREE) :
16 (TOTAL) / 14 (FREE) X MEMORY – DIMM 240-PIN
2 (TOTAL) / 0 (FREE) X PROCESSOR
1 (TOTAL) / 1 (FREE) X PCI EXPRESS 3.0 X16 – FULL-LENGTH, FULL-HEIGHT
1 (TOTAL) / 1 (FREE) X PCI EXPRESS 3.0 X8 – LOW-PROFILE
1 (TOTAL) / 1 (FREE) X MICROSD CARD (INTERNAL)
INTERFACES & PORTS :
1 X DISPLAY / VIDEO – VGA
2 X Network – Ethernet 10BASE-T/100BASE-TX/1000BASE-TX – RJ-45
1 X MANAGEMENT – HP ILO – RJ-45
1 X USB 2.0 ( 1 IN FRONT )
3 X USB 3.0 ( 2 REAR, 1 INTERNAL )
POWER DEVICE :
Device Type : Power Supply
Installed Qty : 2
Voltage Required : AC 120/230 V ( 50/60 HZ )
