Refurbished 775506-B21 Technical Specifications

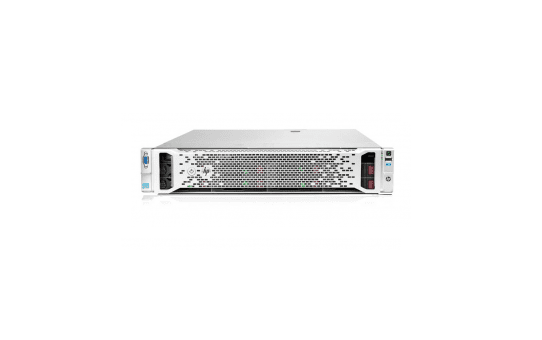

HP Proliant DL180 G9 CTO Chassis With No CPU, No RAM, HP Dynamic Smart Array B140I, 12LFF Hot Plug HDD BAYS, 2X Gigabit Ethernet, 2U Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer part number : 775506-B21
Product name : Proliant DL180 2u rack Mount
PROCESSOR & CHIPSET :
Installed qty : none
Max supported qty : 2
Upgradability : upgradable
Cpu socket : lga2011-v3 socket
Chipset type : intel c610
MEMORY :
Installed size : none
Maximum size : 512gb
Technology : ddr4 sdram – advanced ecc
Form factor : dimm 288-
Memory Slots : 16 x DDR4 RAM Slots
Features : registered, load-reduced dimm (lrdimm
Ram supported :
Pc4-17000 – 256 gb – registered – ecc
Pc4-17000 – 512 gb – load-reduced – ecc
STORAGE & STORAGE CONTROLLER :
Hard drive : none ship standard
Storage controller type : 1 x sata – integrated – pci express 2.0 x4
Controller interface type : serial ata-600
Storage controller name : hp dynamic smart array b140i
Channel qty : 10
Raid level : raid 0, raid 1, raid 5
DISPLAY & GRAPHICS CONTROLLERS :
Graphics controller type : integrated
Graphics processor : matrox g200eh2
Video interfaces : vga
NETWORK & COMMUNICATION :
Networking type : integrated
Ethernet ports : 2x Gigabit Ethernet
Ethernet controller : hp nc361i
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Remote management controller : integrated lights-out 4
Features : wake on lan (wol), pxe support
Compliant standards : ieee 802.3, ieee 802.3u, ieee 802.3ab, ieee 802.1as, ieee 802.3az
