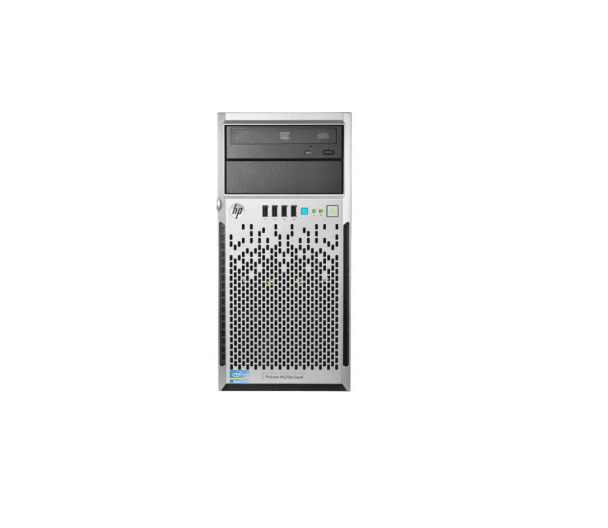

Refurbished 768729-001 Technical Specifications
HP Proliant Ml310e Performance G8 1x Intel Xeon E3 1241v3/3.5 GHz Quad Ore 8GB Ddr3 Sdram HP Dynamic Smart Array B120i Controller 2x Gigabit Ethernet Nc332i Adapter 1x 500gb Hdd 1x 460w Ps 4u Tower Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 768729-001
Product Name : HP Proliant Ml310e Gen8 4u Tower Server(Performance)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E3-1240v3/3.5 GHz
Number Of Cores : Quad-Core (4 core)
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 1
Upgradability : Upgradable
Chipset Type : Intel C222
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 8 Mb
Cache Per Processor : 8 Mb
MEMORY :
Installed Size : 1x 8 Gb
Maximum Size : 32 Gb
Technology : Ddr3 Sdram
Memory Speed : 1600 Mhz
Form Factor : Dimm 240-Pin
Features : Unbuffered, Dual Channel Memory Architecture, Hp Smartmemory
Configuration Features : 1x 8 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : 1x 500 Gb
Hard Drive Rpm : 7200
Interface Type : Sata 6gb/S
Optical Drive Type : Dvd-Rw
Card Reader Type : Card Reader
Storage Controller Type : 1x Sata – Integrated – Pci Express 2.0
Controller Interface Type : Sata 6gb/S
Storage Controller Name : Hp Dynamic Smart Array B120i
Raid Level : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Networking : Integrated Pci Express X2
Ethernet Ports : 2x Gigabit Ethernet
Ethernet Controller(S) : Hp Nc332i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
2 (Total) / 1 (Free) X External 5.25inch X 1/2h
4 (Total) / 3 (Free) X Hot Swap 3.5inch Lff
Expansion Slots Total (Free) :
1 (Total) / 0 (Free) X Cpu
4 (Total) / 3 (Free) X Dimm 240-Pin
1 (Total) / 1 (Free) X Pcie 2.0 X4 – Half-Length, Full-Height ( X1 Mode )
1 (Total) / 1 (Free) X Pcie 2.0 X8 – Full-Length, Full-Height ( X1 Mode )
1 (Total) / 1 (Free) X Pcie 3.0 X8 – Full-Length, Full-Height
1 (Total) / 1 (Free) X Pcie 3.0 X16 – Full-Length, Full-Height ( X8 Mode )
1 (Total) / 1 (Free) X Microsd Card (Internal)
Interfaces & Ports :
1 X Serial
1 X Vga
2 X Lan (Gigabit Ethernet)
1 X Hp Ilo
5 X Usb 2.0 ( 4 Front, 1 Internal )
2 X Usb 3.0
POWER DEVICE :
Device Type : Power Supply
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt
80 Plus Certification : 80 Plus Gold
