Refurbished 765821-001 Technical Specifications

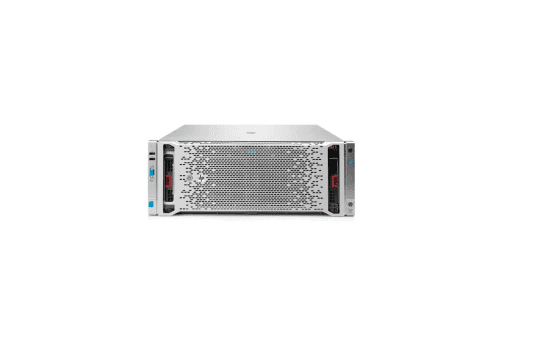

HP Proliant Ml350 Gen9 Energy Star Model 2x Intel Xeon 8-Core E5-2630v3/ 2.4GHz, 32GB(2x16gb) Ddr4 Sdram, 1GB 4-Port 331i Adapter, 2x 800w Fs Rps 5u Rack-Mountable Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 765821-001
Product Name : Proliant Ml350 Gen9 – 5u Rack Mount Server (Energy Star Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2630v3/ 2.4ghz
Max Turbo Speed : 3.2 Ghz
Quickpath Interconnect : 8 Gt/S
Number Of Cores : 8 Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 2
Max Supported Qty : 2
Chipset Type : Intel C610 Series
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 40 Mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 32gb (2x16gb) Dual Rank X4 / 384 Gb (Max)
Technology : Ddr4 Sdram Pc4-17000r (Ddr4-2133)
Form Factor : Dimm 288-Pin
Total Memory Slots : 24 Ddr4 Slots
Ram Supported : Pc4-17000 – 768 Gb – Load-Reduced, Pc4-17000 – 384 Gb – Registered
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array P440ar
Buffer Size : 2 Gb
Disk Drive : 12gb/S Sas / 6gb/S Sata
Sas Port Link Rate : 12gb/S Per Physical Link Supported
Pcie Link Rate : Pci Express 3.0 X8 (Pcie3 X8)
Physical Drives : Up To 26 Drives
Logical Drives Supported : Up To 64 Logical Drives
Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated Matrox G200
NETWORK & COMMUNICATION:
Ethernet Controller : Hp Ethernet 1gb 4-Port 331i Adapter
Network Processor : Broadcom Bcm5719 Chipset
Ethernet Ports : 4 X Gigabit Ethernetduplex Theoretical Bandwidth
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Integrated Lights-Out 4
Remote Management Controller : Rj-45 (Two)
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION :
Device Type : Flex Slot Platinum Plus Hot Plug Power Supply
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 100-240v (50/60 Hz)
Power Provided : 800 Watt
