Refurbished 764272-S01 Technical Specifications

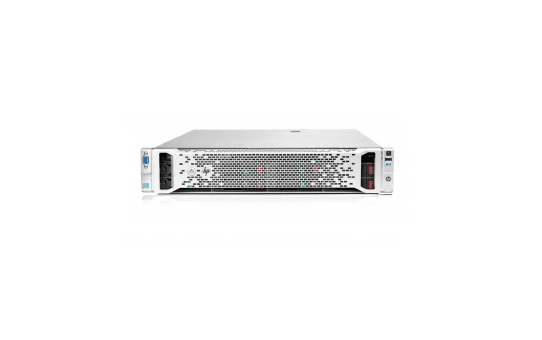

HP DL360p Gen8 E5-2690v2 1P SFF US Svr/S-Buy.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 764272-S01
Product Name: Proliant Dl380p Gen8 2u Rack Mount (S-Buy)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2690v2/3.0 Ghz
Maximum Turbo Speed: 3.60 Ghz
Multi-Core Technology: 10 Core
64-Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Cpu Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Quickpath Interconnect, Intel Turbo Boost Technology
Chipset Type: Intel C600
CACHE MEMORY:
Type: L3 Cache
Installed Size: 25 Mb
Cache Per Processor: 25 Mb
MEMORY:
Installed Ram Size: 16gb/384gb (Max)
Technology: Ddr3 Sdram
Memory Specification Compliance: Pc3-14900
Form Factor: Dimm 240-Pin
Features: Registered, Quad Channel Memory Architecture, Low-Voltage, Hp Smartmemory
RAM SUPPORTED :
Pc3-14900 – 384 Gb – Registered
Pc3-14900 – 768 Gb – Load-Reduced
Pc3-14900 – 128 Gb – Unbuffered – Advanced Ecc
Pc3-10600 – 384 Gb – Hypercloud
STORAGE:
Hard Drive: None
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid – Integrated – Pci Express 3.0 X8
Controller Interface Type: Serial SAta-600/Sas Gb/S
Storage Controller Name: Smart Array P420i With 1gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50
Buffer Size: 1 Gb
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION:
Type : Plug-In Card
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 4x Gigabit Ethernet
Ethernet Controller : Hp 331flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
