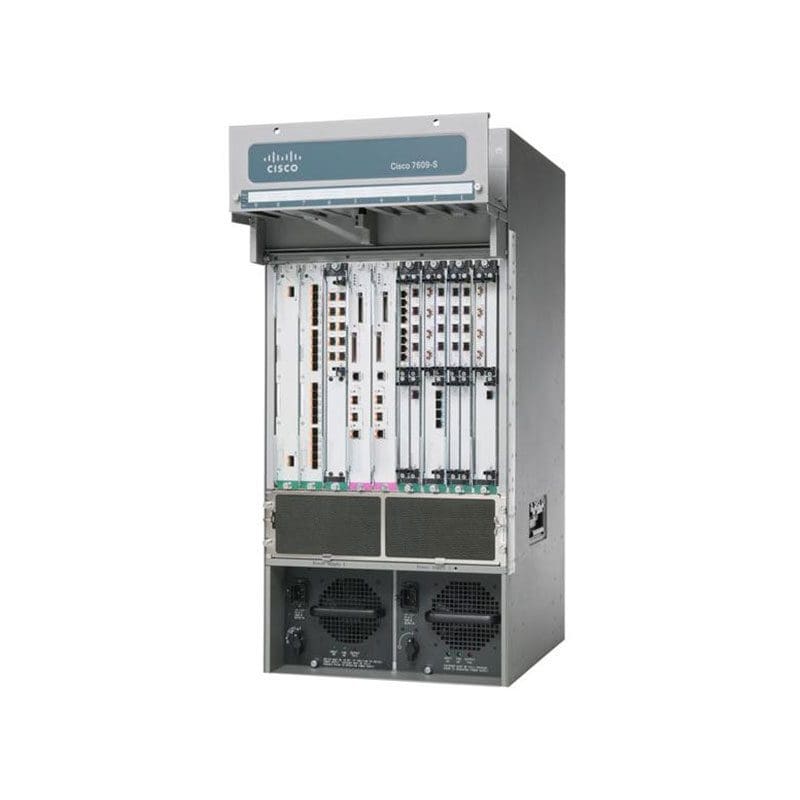

Refurbished 7609-S323B-8G-R Technical Specifications
Cisco 7609 Chassis, 9-slot, Redundant SUP32-8GE-3B and PS
Cisco 7609 – router – rack-mountable – with 2 x Cisco Supervisor Engine 32 with 8 ports Gigabit Ethernet, PFC3B, and MSFC2A Router Bundle
Device Type Router – with 2 x Cisco Supervisor Engine 32 with 8 ports Gigabit Ethernet, PFC3B, and MSFC2A
Enclosure Type Rack-mountable – modular – 21U
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol PIM-SM, PIM-DM, IGMPv3, GRE, PIM-SSM, Multiprotocol BGP
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Features Flow control, layer 4 switching, layer 3 switching, layer 2 switching, DHCP support, NAT support, ARP support, MPLS support, DoS attack prevention, IPv6 support
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Dimensions (WxDxH) 17 in x 21 in x 36.7 in
Weight 121 lbs
General
Device Type Router – with 2 x Cisco Supervisor Engine 32 with 8 ports Gigabit Ethernet, PFC3B, and MSFC2A
Enclosure Type Rack-mountable – modular – 21U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol PIM-SM, PIM-DM, IGMPv3, GRE, PIM-SSM, Multiprotocol BGP
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Features Flow control, layer 4 switching, layer 3 switching, layer 2 switching, DHCP support, NAT support, ARP support, MPLS support, DoS attack prevention, IPv6 support
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Status Indicators Port status, power, link OK, system, active
Expansion / Connectivity
Interfaces 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Hi-Speed USB : 4 x 4 pin USB Type A ¦ Management : 2 x console – RJ-45 ¦ 16 x SFP (mini-GBIC)
Expansion Slot(s) 9 (total) / 7 (free) x expansion slot ¦ 2 CompactFlash Card – type II
Installed Modules Qty (Max) 2 (installed) / 9 (max)
Power
Power Device Power supply – hot-plug / redundant – plug-in module
Installed Qty 2 (installed) / 2 (max)
Miscellaneous
Width 17 in
Depth 21 in
Height 36.7 in
Weight 121 lbs
Rack Mounting Kit Included
Compliant Standards NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
