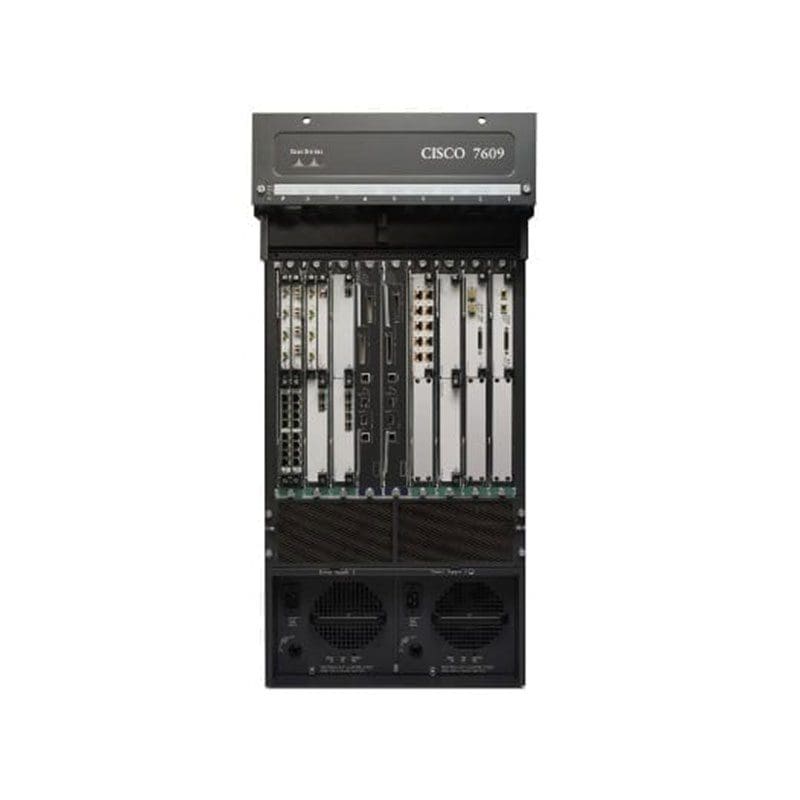

Refurbished 7609-RSP720CXL-R Technical Specifications
Cisco 7609 Chassis,9-slot,Redundant System,2RSP720-3CXL,2PS
Product Model: Cisco 7609
Description: Cisco 7609 Chassis,9-slot,Redundant System,2RSP720-3CXL,2PS
Manufacturer: Cisco Systems, Inc
Product Type: Router Chassis
Router Bundle
Form Factor: Plug-in module – modular – 21U
Dimensions (WxDxH): 36.75 x 17.2 x 20.7 in
Weight: 54.9 kg, chassis only
Processor: PowerPC 1.2 GHz
DRAM Memory: 3 GB (installed) / 6 GB (max)
Routing Protocol: OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol: TCP/IP, ICMP/IP
Features
Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards: IEEE 802.1x
Bundled with: 2 x Cisco 7600 Series Route Switch Processor 720 with PFC-3CXL
