Refurbished 7606S-RSP720C-R Technical Specifications

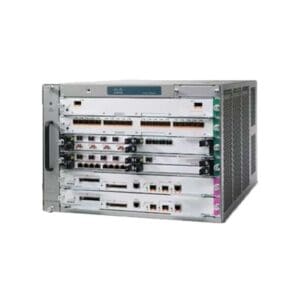

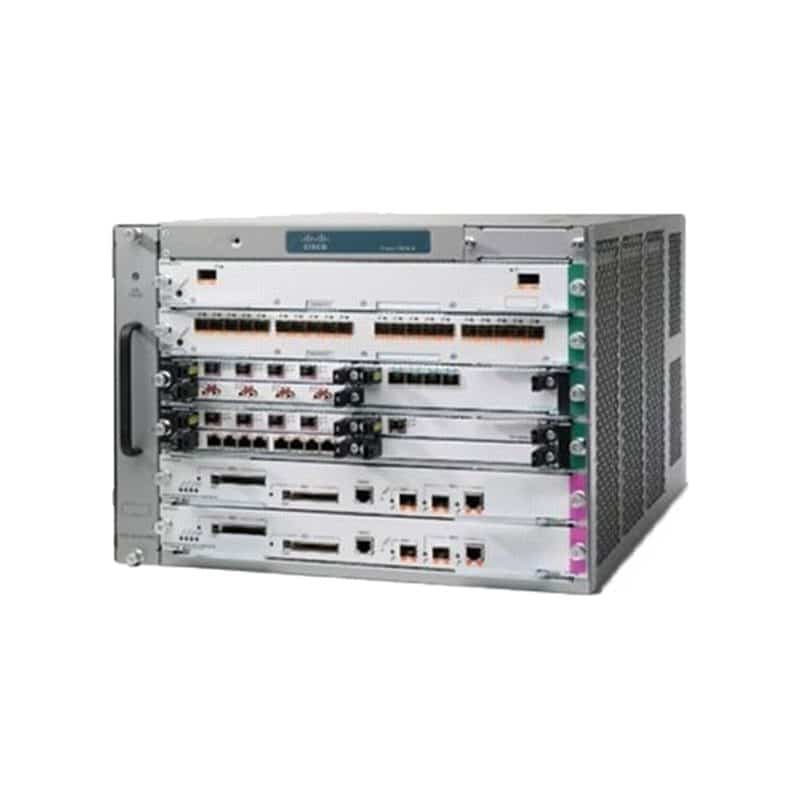

Cisco 7606S Chassis,6-slot,Redundant System,2RSP720-3C,2PS
Slot Provided
Form Factor : Type II
Free Qty : 2
Total Qty : 3
Type : CompactFlash Card
Free Qty : 4
Total Qty : 6
Interface Provided
Connector Type : RJ-45
Interface : Ethernet 10Base-T/100Base-TX/1000Base-T
Qty : 1
Type : Network
Connector Type : SFP (mini-GBIC)
Qty : 2
Interface : Console
Type : Management
Type : Management
Networking
Compliant Standards : IEEE 802.1x
Connectivity Technology : Wired
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Access Control List (ACL) support, DHCP support, DoS attack prevention, Dynamic IP address assignment, IGMP snooping, Layer 2 switching, Layer 3 switching, MPLS support, Quality of Service (QoS), Traffic shaping, VLAN support
Form Factor : Rack-mountable
Modular : Modular
Network Transport Protocol : ICMP/IP, TCP/IP
Routing Protocol : BGP-4, Bidirectional PIM, IGMP, IS-IS, OSPF, PIM-DM, PIM-SM, RIP
Type : Router
Miscellaneous
Compliant Standards : AS/NZ 3548 Class A, AS/NZS 3260, CISPR 22 Class A, CSA C22.2 No. 60950-00, EN 60825-1, EN 60950, EN 61000-3-2, EN 61000-3-3, EN300-386, EN50082-1, EN55022 Class A, EN55024, ETSI, FCC CFR21 Part 1040, FCC CFR47 Part 15, ICES-003 Class A, IEC 60825-1, IEC 60950, NEBS level 3, UL 60950, VCCI Class A ITE
Height (Rack Units) : 7
MTBF : 400,000 hours
Rack Mounting Kit : Included
Environmental Parameters
Humidity Range Operating : 10 – 85%
Max Operating Temperature : 104 °F
Min Operating Temperature : 32 °F
Header
Brand : Cisco
Bundled with : 2 x Cisco 7600 Series Route Switch Processor 720 with PFC-3C
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT
Product Series Cisco 7606
Model : 7606S
Packaged Quantity : 1
Product Line : Cisco
Product Type: Router Chassis
Router Bundle
Modem
Type : None
Power Device
Hot-Plug : Hot-plug
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : AC 230 V
Power Redundancy : Yes
Type : Internal power supply
Processor
Clock Speed : 1.2 GHz
Type : PowerPC
Dimensions & Weight
Depth : 21.5 in
Height : 12.2 in
Width : 17.2 in
Capacity
Type : ACL rules
Type : IPv4 routes
Value : 256000
Type : IPv6 routes
Value : 128000
Type : NetFlow entries
Chassis
Installed Devices Modules Qty : 2
Supported Devices Modules Qty : 6
Expansion Slots
Type : Expansion slot
Performance
Type : IPv4 routing
Value : 400 Mbps
Type : IPv6 routing
Value : 200 Mbps
Type : Switching capacity
Value : 720 Gbps
RAM
Installed Size : 2 GB
Max Supported Size : 6 GB
