Refurbished 7606-RSP720C-R Technical Specifications

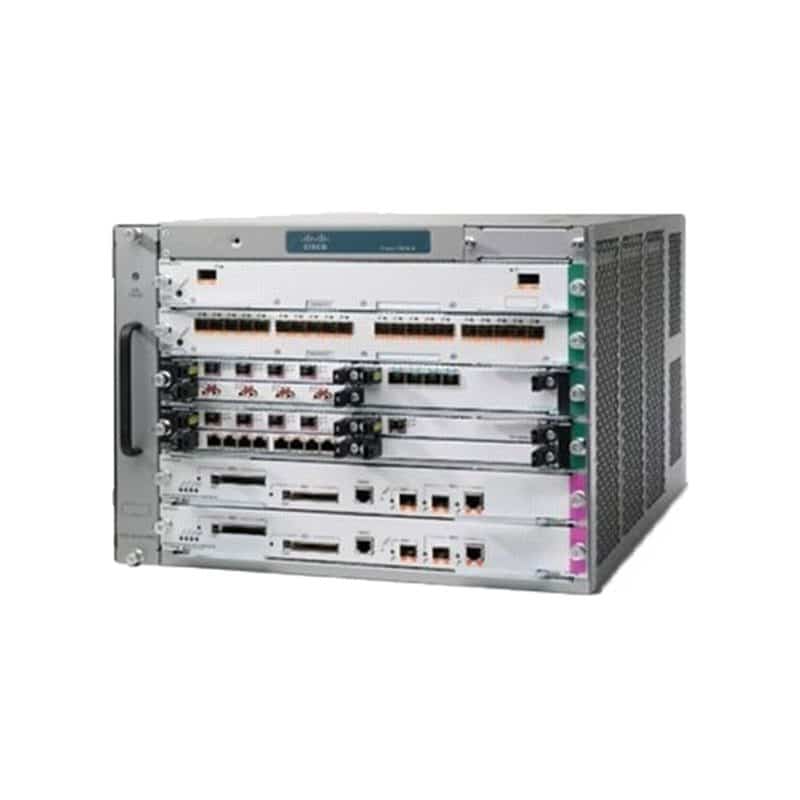

Cisco 7606 Chassis,6slot,Redundant,2RSP720-3C,2PS
Product Specifications
Product Description: Cisco 7606 – router – plug-in module – with 2 x Cisco 7600 Series Route Switch Processor 720 with PFC-3C
Device Type: Router – with 2 x Cisco 7600 Series Route Switch Processor 720 with PFC-3C
Product Type: Router Chassis
Router Bundle
Enclosure Type: Plug-in module – modular – 7U
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Performance IPv4 routing : 400 Mbps ¦ IPv6 routing : 200 Mbps ¦ Switching capacity : 720 Gbps
Capacity IPv4 routes : 256000 ¦ IPv6 routes : 128000 ¦ NetFlow entries : 128000 ¦ ACL rules : 128000
Network / Transport Protocol: TCP/IP, ICMP/IP
Routing Protocol: OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
Features: Layer 3 switching, layer 2 switching, dynamic IP address assignment , DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards: IEEE 802.1x
Dimensions (WxDxH): 17.4 in x 21.8 in x 12.2 in
General
Device Type: Router – with 2 x Cisco 7600 Series Route Switch Processor 720 with PFC-3C
Enclosure Type: Plug-in module – modular – 7U
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Performance IPv4 routing : 400 Mbps ¦ IPv6 routing : 200 Mbps ¦ Switching capacity : 720 Gbps
Capacity IPv4 routes : 256000 ¦ IPv6 routes : 128000 ¦ NetFlow entries : 128000 ¦ ACL rules : 128000
Network / Transport Protocol: TCP/IP, ICMP/IP
Routing Protocol: OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
Features: Layer 3 switching, layer 2 switching, dynamic IP address assignment , DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards: IEEE 802.1x
Processor: PowerPC 1.2 GHz
RAM: 2 GB (installed) / 6 GB (max)
Expansion / Connectivity
Interfaces 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management : 1 x console – RJ-45 ¦ 2 x SFP (mini-GBIC)
Expansion Slot(s) 3 (total) / 2 (free) x CompactFlash Card – type II ¦ 6 (total) / 4 (free) x expansion slot
Installed Modules Qty (Max) 2 (installed) / 6 (max)
Power
Power Device Power supply – hot-plug / redundant – plug-in module
Installed Qty 2 (installed) / 2 (max)
Miscellaneous
Width 17.4 in
Depth 21.8 in
Height 12.2 in
Rack Mounting Kit Included
Compliant Standards NEBS level 3, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZS 3260, CSA C22.2 No. 60950-00, ICES-003 Class A, EN300-386, FCC CFR21 Part 1040
Pricing Type Refurbished
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
