754521-B21 Technical Specifications

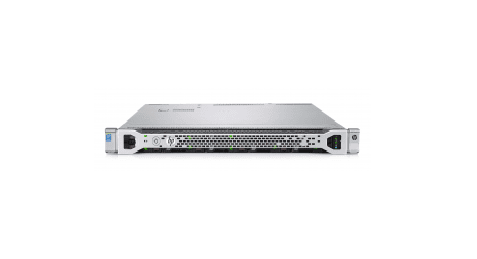

HP Proliant DL160 G9 CTO Chassis With No CPU, No RAM, Hot-Plug 4LFF HDD Bays, HP Dynamic Smart Array B140I, 2X Gigabit Ethernet, 1U Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 754521-B21
Product Name : Proliant Dl160 Gen9 1u Rack Mount (Cto Chassis)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon
Installed Qty : 0
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C610
MEMORY :
Installed Size : None
Maximum Size : 512 Gb
Technology : Ddr4 Sdram
Form Factor : Dimm 288-Pin
Memory Slots: 16 x DDR4 RAM Slots
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Storage Controller Type : 1 X Raid – Integrated
Controller Interface Type : Sata 6gb/S
Storage Controller Name : Hp Dynamic Smart Array B140i
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200eh2
Video Interfaces : Vga
NETWORKING :
Type : Integrated
Ethernet Ports : 2 X Gigabit Ethernet
