749800-001 HP Smart Array 12gb/s 2-ports Int Sas Raid Controller

749800-001 Overview

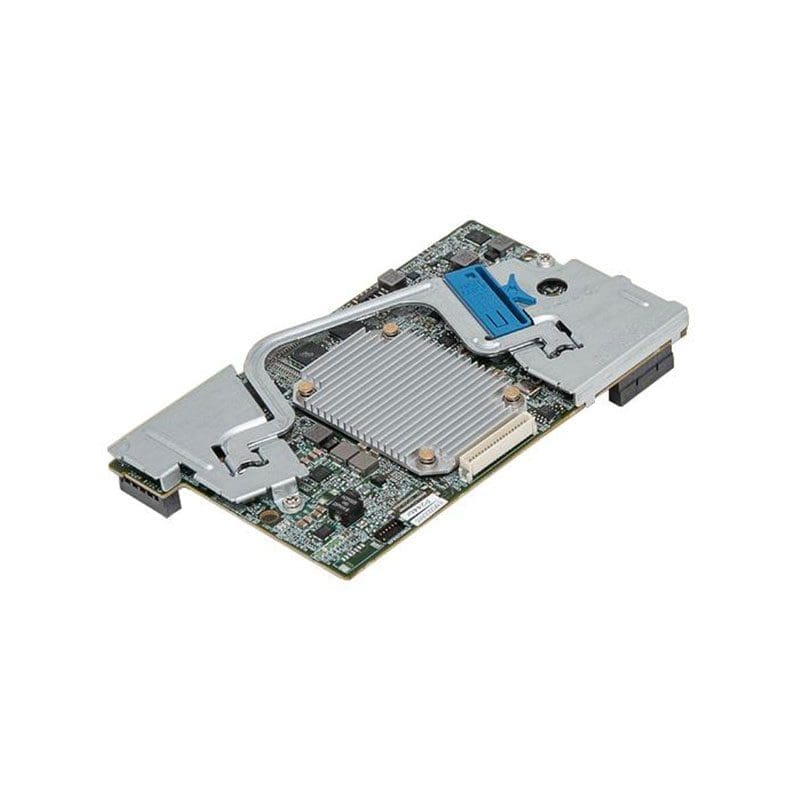

HP Smart Array P244br 12gb/s 2-ports Int Sas Raid Controller For Gen9

Availability: In Stock
SKU:749800-001
Brand:

749800-001 Technical Specifications

HP Smart Array P244br 12gb/s 2-ports Int Sas Raid Controller For Gen9

Manufacturer : Hp
Manufacturer Part Number : 749800-001
Product Type : Smart Array Sas Raid Controller
Technical Specifications :
Disk Drive : 12gb/s Sas (serial Attached Scsi)
Support – Transfer Rate : 6gb/s Sata (serial Ata)
Sas Connectors : 2-internal Port Connectors
Cache Memory Speed : Ddr3-mhz With 72-bit Wide Bus Provides Up To 4.2gb/s Maximum Bandwidth
Server Interface : X8 5g Pcie 3.0 Provides 8gb/s Maximum Bandwidth
Sas Speed : X8 12g Sas Provides 9.6gb/s Maximum Bandwidth
Cache Memory : 72-bit 1gb Ecc Protected Cache
Logical Drives Supported : Up To 64 Logical Volumes
Maximum Volume Capacity : 2.4tb (2x 1.2tb Sas/sata 2.5 Mdl Hdd) Internal
Memory Addressing : 64-bit, Supporting Servers Memory Space Greater Than 4 Gb
Raid Support : Raid 1, 10 (drive Mirroring)
