Refurbished 748206-S01 Technical Specifications

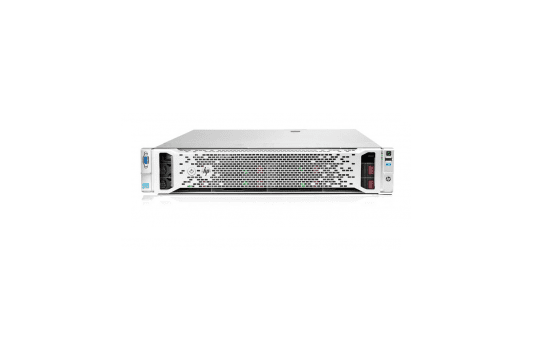

HP Proliant DL380E G8 S Buy 1x Intel Xeon E5-2420V2/2.2GHz 6 Core, 16GB DDR3 RAM, Gigabit Ethernet 4-Port 366I Adapter, Smart Array B320I/512 MB FBWC Controller, Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 748206-S01
Product Name : Proliant Dl380e V2 Gen8 2u Rack Mount (S-Buy)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2420V2/2.2GHz
Number Of Cores : Hexa-Core (6 Core)
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Processor main features :
Chipset Type : Intel C600
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 15 MB
Cache Per Processor : 15 MB
MEMORY :
Installed Size : 16 GB
Maximum Size : 384 GB
Technology : DDR3 RAM
Form Factor : DIMM 240-PIN
Total Memory Slots : 12 DDR3 Slots
RAM SUPPORTED :
PC3-12800 – 192 GB – Registered
PC3-10600 – 384 GB – Load-Reduced
PC3-10600 – 96 GB – Low Voltage – Unbuffered – ECC
PC3-10600 – 192 GB – Low Voltage – Registered
PC3-12800 – 96 GB – Unbuffered – ECC
STORAGE & STORAGE CONTROLLER :
Hard Drive : None Ship Standard
Type : 1 X Raid – Integrated – PCI Express 2.0 X4
Controller Interface Type : SATA 6GB/S / SAS 6GB/S
Storage Controller Name : Hp Dynamic Smart Array B320i/512 Mb Fbwc Controller
Channel Qty : 8
Raid Level : RAID 0, RAID 1, RAID 5, RAID 10
Buffer Size : 512 MB
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : VGA
NETWORK & COMMUNICATION :
Networking : Network Adapter – PCI Express 2.0 X1 – Integrated
Ethernet Ports : 4x Gigabit Ethernet
Ethernet Controller(S) : HP 366I
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On LAN (WOL), PXE Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ
EXPANSIONS & CONNECTIVITY :
Expansion bays total (free) :
8 (TOTAL) / 8 (FREE) X 2.5IN SFF
1 (TOTAL) / 1 (FREE) X EXTERNAL 5.25IN SLIM LINE
EXPANSION SLOTS TOTAL (FREE) :
12 (TOTAL) / 10 (FREE) X MEMORY – LRDIMM 240-PIN
2 (TOTAL) / 1 (FREE) X PROCESSOR
1 (TOTAL) / 1 (FREE) X PCIE 3.0 X8 – Full-Length, Full-Height ( X4 MODE )
1 (TOTAL) / 1 (FREE) X PCIE 3.0 X16 – Half-Length, Full-Height ( X8 MODE )
1 (TOTAL) / 1 (FREE) X PCIE 2.0 X8 – Low-Profile ( X4 MODE )
1 (TOTAL) / 1 (FREE) X SD CARD
INTERFACES & PORTS :
2 X DISPLAY / VIDEO ( 1 FRONT, 1 REAR )
4 X LAN (Gigabit Ethernet)
1 X HP ILO
7 X USB (2 FRONT, 4 REAR,1 Internal)
1 X Serial
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : AC 120/230 V (50/60 HZ)
Power Provided : 460 WATT
80 Plus Certification : 80 Plus Gold
