Refurbished 747771-001 Technical Specifications

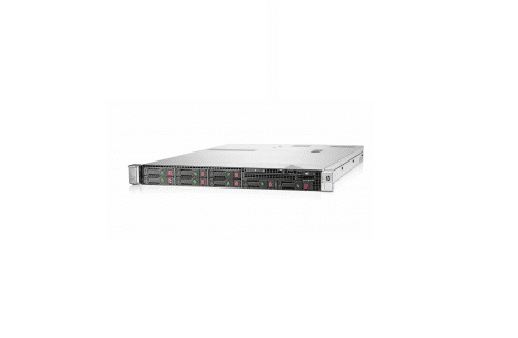

HP Proliant Dl380e G8 High Performance 2x Intel Xeon E5-2450v2/2.5GHz 8-Core, 24GB Ddr3 Sdram, HP Gigabit Ethernet 4-Port 366i Adapter, 2x 460w Hot-Plug Ps, 2u Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 747771-001
Product Name : Proliant Dl380e Gen8 2u Rack Mount High Performance Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2450v2/2.5ghz
Number Of Cores : Octa-Core (8 Core)
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 40 Mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 24 Gb
Maximum Size : 384 Gb
Technology : Ddr3 Sdram
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3l-12800r
Form Factor : Dimm 240-Pin
Configuration Features : 3 X 8 Gb
RAM SUPPORTED :
Pc3-12800 – 192 Gb – Registered
Pc3-10600 – 384 Gb – Low Voltage – Load-Reduced
Pc3-10600 – 96 Gb – Low Voltage – Unbuffered – Ecc
Pc3-10600 – 192 Gb – Low Voltage – Registered
Pc3-12800 – 96 Gb – Unbuffered – Ecc
STORAGE & STORAGE CONTROLLER :
Hard Drive : None Ship Standard
Internal Storage : 8 Sff Hdd 8 Bays
Controller Type : 1 X Rad – Plug-In Card – Pci Express 2.0 X4
Controller Interface Type : Sata 3gb/S / Sas 6gb/S
Storage Controller Name : Smart Array P420 With 1gb Fbwc
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 1 Gb
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Type : Integrated
Interface (Bus) Type : Pci Express 2.0 X2
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(S) :Hp Ethernet 1gb 4-Port 366i Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Provided : 460 Watt
80 Plus Certification : 80 Plus Gold
