Refurbished 746080-S01 Technical Specifications
HP Proliant Dl580 G8 S-Buy 2x Intel Xeon E7-4870v2/2.3 GHz 15 Core 64GB Ddr3 Sdram Smart Array P830i/2gb Fbwc 4x Gigabit Ethernet 2x 1200w Ps 4u Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 746080-S01

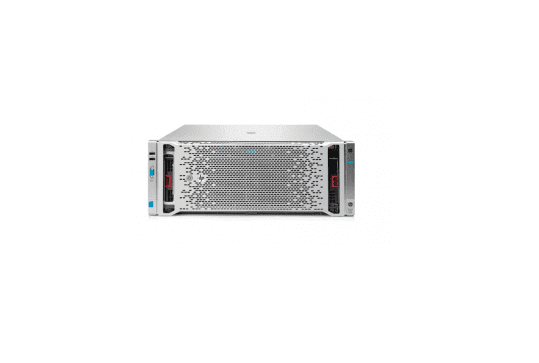

Product Name: Proliant Dl580 Gen8 4u Rack Mount S-Buy
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E7-4870 /2.3 GHz
Multi-core technology: 15 core
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 4
Chipset Type: Intel C602j
CACHE MEMORY:
Type: l3 cache
Installed size: 60 MB
Cache per processor: 30 MB
MEMORY:
Installed RAM Size: 64GB/3TB(MAX)
Technology: DDR3 SDRAM
Memory Specification Compliance: pc3-14900
Form factor: DIMM 240-PIN
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features: 8 X 8 GB
STORAGE:
Hard Drive: None
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid Integrated – Pci Express 2.0 X4
Controller Interface Type: Serial SAta-600/Sas 3.0
Storage Controller Name: Smart Array P830i With 2gb Fbwc
Channel qty : 8
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer size: 2 GB
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces : VGA
NETWORK & COMMUNICATION:
Type : Plug-In Card
Interface (Bus) Type : Pci Express 2.0 X4
Ethernet Ports : 4x Gigabit Ethernet
Ethernet Controller : HP 331flr
Data Link Protocol : Gigabit Ethernet
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.3AE, IEEE 802.1AX, IEEE 802.1QBB, IEEE 802.1QAZ, IEEE 802.1QAU, IEEE 802.1QBG, IEEE 802.2X
