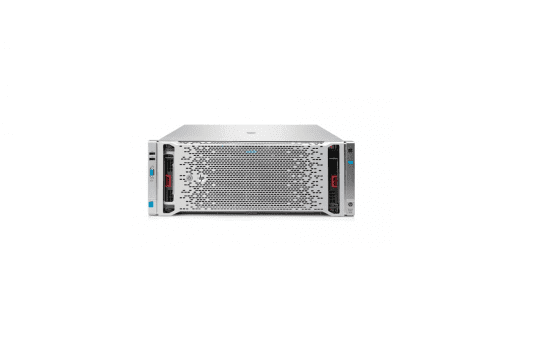

Refurbished 728544-001 Technical Specifications
HP Proliant Dl580 G8 High Performance 4x Intel Xeon E7-4890v2/2.8 GHz 15 Core 128GB Ddr3 Sdram Smart Array P830i/2gb Fbwc 2x 10 Gigabit Ethernet 4x 1500w Ps 4u Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 728544-001
Product Name: Proliant Dl580 Gen8 4u Rack Mount (High Performance)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E7-4890v2 /2.8 Ghz
Multi-Core Technology: 15 Core
64-Bit Computing: Yes
Installed Qty: 4
Max Supported Qty: 4
CPU Upgradability : Upgradable
Chipset Type: Intel C602j
CACHE MEMORY:
Type: L3 Cache
Installed Size: 150 MB
Cache Per Processor: 37.5 MB
MEMORY:
Installed RAM Size: 128 Gb / 3 Tb (Max)
Technology: Ddr3 Sdram
Memory Speed: 1600 MHz
Memory Specification Compliance: Pc3-14900
Form Factor: Dimm 240-Pin
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP Smartmemory
Configuration Features: 16 X 8 GB
STORAGE:
Hard Drive: None
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid Integrated Pci Express 2.0 X4
Controller Interface Type: Serial SAta-600/SAS 3.0
Storage Controller Name: Smart Array P830i With 2gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size: 2 GB
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces : VGA
NETWORK & COMMUNICATION:
Type : Plug-In Card
Interface (Bus) Type : Flexiblelom
Ethernet Ports : 2x 10 Gigabit Ethernet
Ethernet Controller : Hp Flexfabric 534flr-Sfp+
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.3AE, IEEE 802.1AX, IEEE 802.1QBB, IEEE 802.1QAZ, IEEE 802.1QAU, IEEE 802.1QBG, IEEE 802.2X
