Refurbished 728350-B21 Technical Specifications
HP Proliant BL660C Gen9 4x Intel Xeon 10-Core E5-4620V3/ 2.0GHz, 128GB(8X16GB) DDR4 SDRAM, Smart Array P246br With 1GB FBWC, 2X 10GB 2-Port 536FLB Flexiblelom Adapter, 4U Blade Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 728350-B21

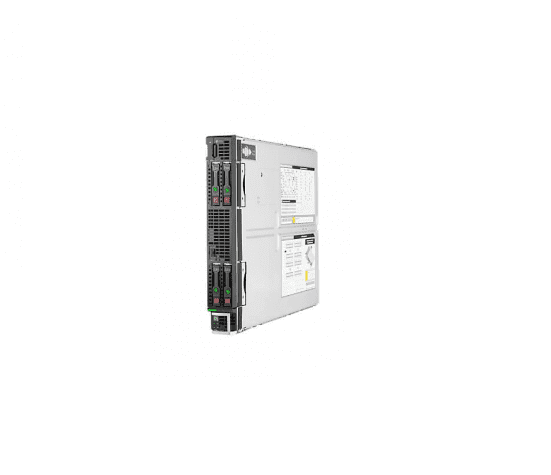

Product Name: Proliant Bl660c Gen9 – 4u Blade Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-4620V3 / 2.0GHz
Quickpath Interconnect : 8 GT/S
number of cores : 10 core
64-Bit Computing : Yes
Compatible Processor Socket : FCLGA2011
Installed Qty : 4
Max Supported Qty : 4
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 100 MB
Cache Per Processor : 25 MB
MEMORY :
Installed Size : 128 GB / 1 TB (MAX)
Technology : DDR4 SDRAM – ADVANCED ECC
Memory Speed : 2133 MHz
Memory Specification Compliance : PC4-17000
Form Factor : DIMM 288-PIN
Memory slots: 32 x DDR4 RAM Slots
Features : Registered, Online Spare Memory, Hp Smartmemory
Configuration Features : 8 X 16 GB
RAM Supported : PC4-17000 – 1 TB – Registered ¦ PC4-17000 – 2 TB – Load-Reduced
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
TYPE : 1 X RAID – PCI EXPRESS 3.0 X8
Controller Interface Type : SAS 12GB/S
Storage Controller Name : HP SMART ARRAY P246BR WITH 1GB FBWC
Channel Qty : 4
Raid Level : RAID 0, RAID 1, RAID 5
Buffer Size : 1 GB
GRAPHICS CONTROLLER:
Graphics Processor : Matrox G200EH
NETWORK & COMMUNICATION:
Interface (Bus) Type : Pci Express 3.0 X8
Ethernet Ports : 4 X 10 Gigabit Ethernet
Ethernet Controller : 2 X Hp 536flb
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Protocol : SNMP, IPMI 2.0
Remote Management Controller : Integrated Lights-Out 4
Features : Pxe Support
Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3ae, IEEE 802.3AP, IEEE 802.1QAU
EXPANSION/ CONNECTIVITY :
Expansion bays total (free) :
4 (TOTAL) / 4 (FREE) X HOT-SWAP 2.5 SFF
EXPANSION SLOTS TOTAL (FREE) :
4 (TOTAL) / 0 (FREE) X CPU
32 (TOTAL) / 24 (FREE) X DIMM 288-PIN
2 (TOTAL) / 0 (FREE) X PCIE 3.0 X16
1 (TOTAL) / 0 (FREE) X PCIE 3.0 X16 ( 2 PROCESSORS MUST BE INSTALLED )
1 (TOTAL) / 1 (FREE) X MICROSDHC CARD (INTERNAL)
INTERFACES & PORTS :
1 X HP ILO
2 X USB 3.0 ( 2 Internal)
4 X LAN (10 Gigabit Ethernet)
