727026-B21 Technical Specifications

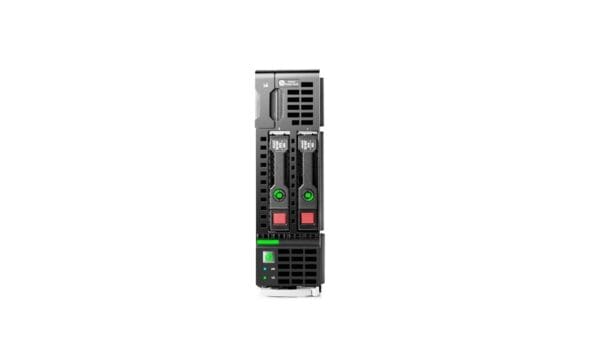

HP Proliant Bl460c G9 Entry Model 1x Intel Xeon 6-Core E5-2609v3/ 1.9GHz, 16gb(2x8gb) Ddr4 Sdram, Smart Array H244br Without Fbwc, 10gb 2-Port 536flb Adapter Blade Server
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 727026-B21
Product Name : Proliant Bl460c Gen9 – Blade Server (Entry Model)
PROCESSOR & CHIPSET
Processor Type: Intel Xeon E5-2609v3/ 1.9ghz
Quickpath Interconnect: 6.4 Gt/S
Number Of Cores : 6-Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 2
Intel Xeon
Chipset Type : Intel C610 Series
CACHE MEMORY:
Type : Smart Cache
Installed Size : 15 Mb
MEMORY :
Installed Size : 16gb (2x8gb) Dual Rank X4 / 256 Gb (Max)
Technology : DDR4 Sdram Pc4-17000r (Ddr4-2133)
Form Factor : Dimm 288-Pin
Total Memory Slots : 16 DDR4 Slots
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array H244br
Buffer Size : None
Disk Drive : 12gb/Ssas (Serial Attached Scsi) (SAS)
Protocol Support : 6gb/S SATA (Serial Advanced Technology Attachment)
Data Transfer Method : 12gb/S Per Port For Combined Throughput Of Up To 24gb/S
Pcie Bus Speed : Pcie 3.0 X8 (8gt/S Maximum Bandwidth)
Port Transfer Rate : 24gb/S Per X1 Sas Port (2x 12gb/S)
Maximum Capacity : 2.4tb Sas,2.4tb Sata
Memory Addressing : 64-Bit, Supporting Servers Memory Greater Than 4gb
Raid Support : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS:
Graphics Controller Type : Integrated Matrox G200eh
NETWORK & COMMUNICATION:
Ethernet Controller : Hp Ethernet 10gb 2-Port 536flb Adapter
Network Processor : Qlogic 57840s With Integrated Mac/Phy
Data Rate : Two Ports, Each At 20 Gbps Full Duplex, 40 Gbps Aggregate Full Duplex Theoretical Bandwidth
On-Board Buffer Memory : 900mb (Distributed Memory)
Bus Type : Pci Express V3.0 (Gen 3) X8
Form Factor : Flexiblelom
Ieee Compliance : 802.3, 802.1ab, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.1qau, 802.3ap
