726903-B21 Technical Specifications

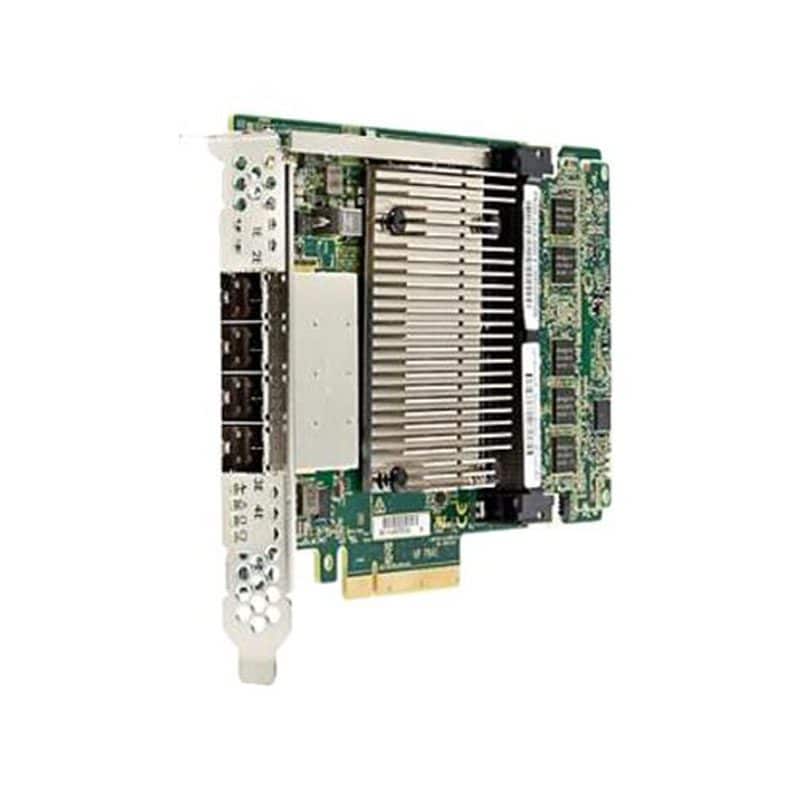

HP Smart Array P841 4GB Cache 4-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 RAID 0/1/5/6/10/50/60/1ADM/10ADM Controller Card
Manufacturer Part Number 726903-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 1
5
6
10
50
60
1 ADM
0
10 ADM
Memory
Cache Memory 4 GB
Interfaces/Ports
Total Number of SAS Ports 16
Number of SAS Ports (External) 16
SAS Connector Details 4
Physical Characteristics
Height 0.6″
Width 4.4″
Depth 6.6″
Form Factor Plug-in Card
Weight (Approximate) 15.87 oz
