7159GF5 Technical Specifications

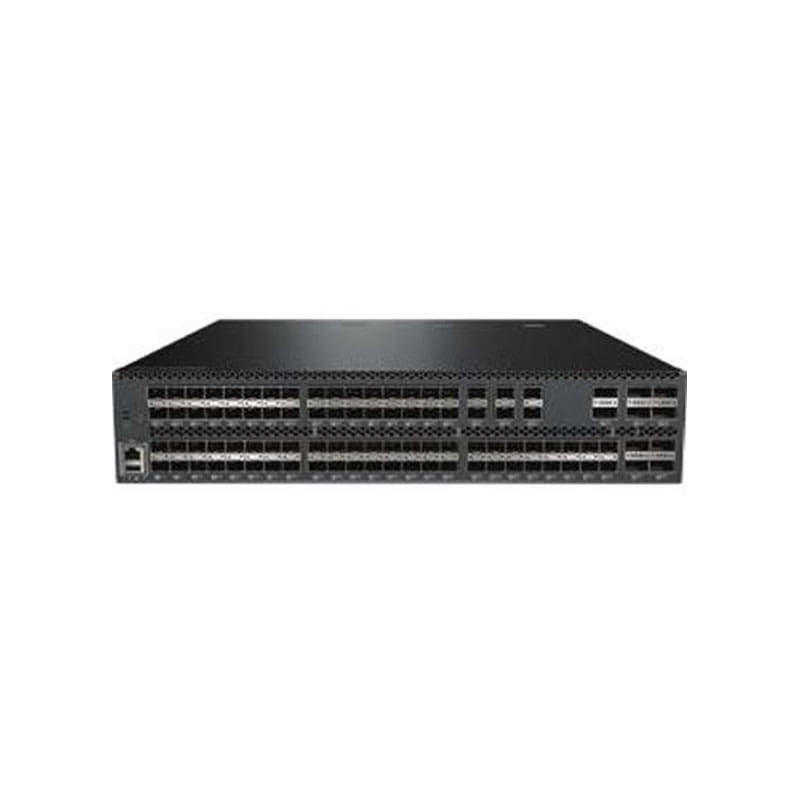

Lenovo Rack Switch 7159GF5 G8296 (Front to Rear) 84PT 10G SFP+ 10 Port 40G QSFP+
Manufacturer Part Number: 7159GF5
Product Type: Layer 3 Switch
Manageable: Yes
Ethernet Technology: 10 Gigabit Ethernet, 40 Gigabit Ethernet
Number of Total Expansion Slots: 96
Product Family: RackSwitch
Stack Port; No
Media Type Supported: Optical Fiber
Redundant Power Supply Supported; Yes
Expansion Slot Type: QSFP+, SFP+
Form Factor: Rack-mountable
Power Source: Power Supply
Layer Supported: 3
Environmentally Friendly; Yes
Compatible Rack Unit; 2U
Number of SFP+ Slots; 86
Modular: No
Uplink Port: Yes
Port / Expansion Slot Details: 86 x 10 Gigabit Ethernet Expansion Slot, 10 x 40 Gigabit Ethernet Expansion Slot
Height: 3.4″
Width: 22.5″
Depth: 17.4″
Product Model: G8296
Network Technology: 1000Base-SX, 1000Base-LX, 1000Base-T, 10GBase-LR, 10GBase-SR, 10GBase-ER, 40GBase-X
Product Line: RackSwitch
Packaged Quantity: 1
