Refurbished 712329-001 Technical Specifications

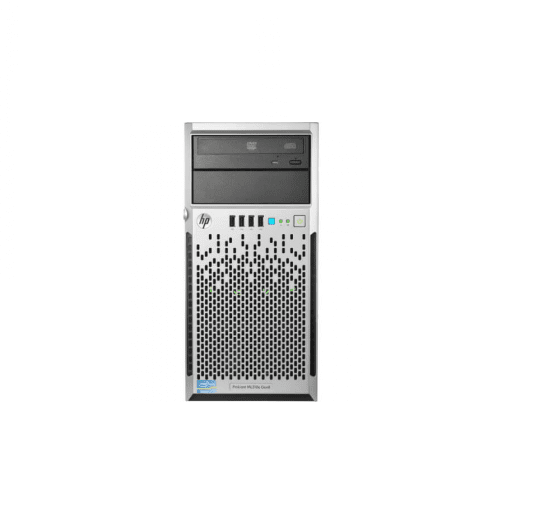

HP Proliant Ml310e G8 1x Xeon Quad Core E3 1220v3 3.1GHZ 4GB DDR3 Sdram Smart Array B120i Nc332i Ethernet Controller 1x 350w Ps 4u Micro Tower Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 712329-001
Product Name : Proliant Ml310e Gen8 V2 4u Tower Micro Tower Server (Base Model)
Processor & Chipset :
Processor Type : Intel Xeon E3-1220V3 /3.1ghz
Multi-Core Technology : Quad-Core (4 Core)
64-Bit Processing : Yes
Installed Qty : 1
Max Supported Qty : 1
Chipset Type : Intel C222
CACHE MEMORY :
Cache Memory : 8 Mb L3 Cache
Cache Per Processor : 8 MB
MEMORY :
Installed Size : 4 Gb / 32 Gb (Max)
Technology : Ddr3 Sdram – Ecc
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3-12800
Form Factor : Dimm 240-Pin
Features : Unbuffered, Dual Channel Memory Architecture, Hp Smartmemory
Configuration Features : 1 X 4 Gb
STRAGE & STORAGE CONTROLLER :
Hard Drive : No Hdd
Optical Drive Type : Dvd-Writer
Storage Controller (1st) Type : 1 X Sata – Integrated – Pci Express 2.0
Controller Interface Type : Sata 6gb/S
Storage Controller Name : Hp Dynamic Smart Array B120i
Channel Qty : 6
Raid Level : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Networking Type : Integrated
Interface (Bus) Type : Pci Express X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc332i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
2 (Total) / 1 (Free) X External 5.25inch X 1/2h
4 (Total) / 4 (Free) X Hot-Swap 3.5inch Lff
Expansion Slots Total (Free) :
1 (Total) / 0 (Free) X Cpu
4 (Total) / 3 (Free) X Dimm 240-Pin
1 (Total) / 1 (Free) X Pcie 2.0 X4 – Half-Length, Full-Height ( X1 Mode )
1 (Total) / 1 (Free) X Pcie 2.0 X8 – Full-Length, Full-Height ( X1 Mode )
1 (Total) / 1 (Free) X Pcie 3.0 X8 – Full-Length, Full-Height
1 (Total) / 1 (Free) X Pcie 3.0 X16 – Full-Length, Full-Height ( X8 Mode )
Interfaces & Ports :
1 X Serial
1 X Vga
2 X Lan (Gigabit Ethernet)
1 X Hp Ilo
5 X Usb 2.0 ( 4 Front, 1 Internal )
2 X Usb 3.0
POWER DEVICE :
Device Type : Power Supply
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 350 Watt
DIMENSIONS & WEIGHT :
Width : 6.9 In
Depth : 18.7 In
Height : 14.5 In
Weight : 25.3 Lbs
