70FX0003US Technical Specifications

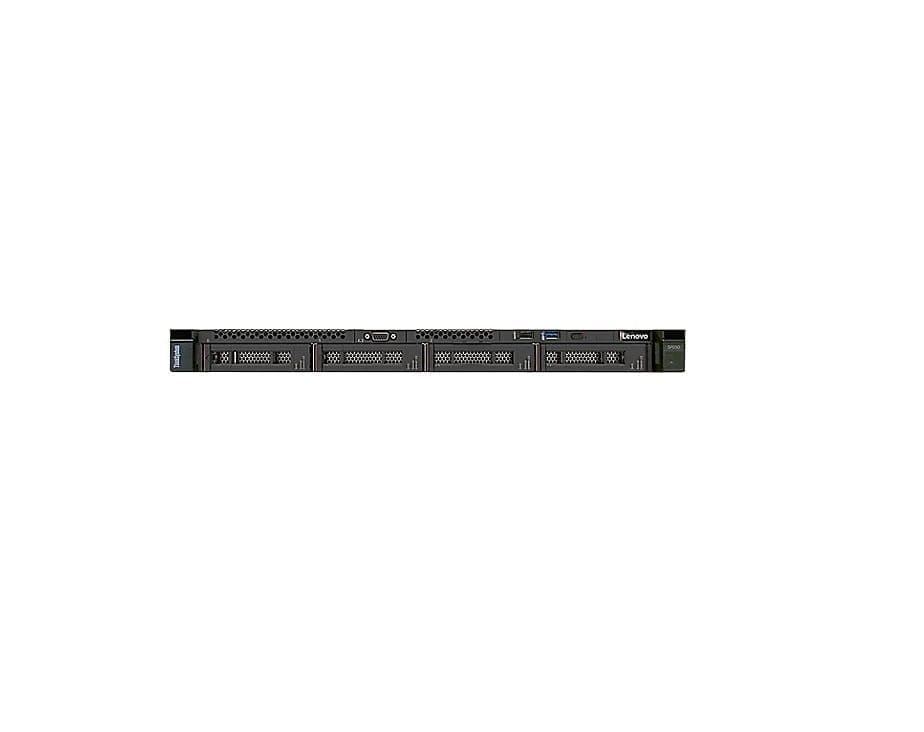

Lenovo N3310 E5-2603V3 8GB 4X4TB SATA DVR
General Information
Product Name N3310 E5-2603V3 8GB 4X4TB SATA DVR 3-Year
Manufacturer Part Number 70FX0003US
Product Model N3310
Package Type Retail
Product Type NAS Storage System
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 2.0 Ports 2
Number of USB 3.0 Ports 2
Network (RJ-45) Yes
VGA Yes
Controllers
Controller Type Serial ATA/600
6Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 10
I/O Expansions
Number of Total Expansion Bays 4
Number of 3.5″ Bays 4
Memory
Standard Memory 8 GB
Memory Technology DDR4 SDRAM
Network & Communication
Ethernet Technology Gigabit Ethernet
Storage
Number of Hard Drives Installed 4
Total Hard Drive Capacity Installed 16 TB
Optical Drive Type DVD-Writer
Processor & Chipset
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2603 v3
Processor Core Hexa-core (6 Core)
Processor Speed 1.60 GHz
Software
Operating System Windows Storage Server 2012 R2
Physical Characteristics
Height 1.7″
Width 19″
Depth 31.6″
Form Factor Rack-mountable
Rack Height 1U
