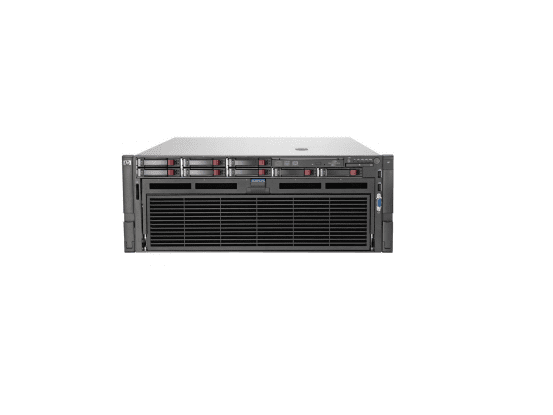

Refurbished 704963-B21 Technical Specifications
HP Proliant Dl585 G7 Cto Chassis With No CPU No Ram Sff Sas/Sata/Ssd Drive Cage Ethernet 1GB 4-Port 331i-Spi Adapter Smart Array P410i/ Zero Memory Controller No Rails 4u Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 704963-B21
Product Name : Proliant Dl585 Gen7 Cto Server
PROCESSOR & CHIPSET :
Processor Type: Amd Opteron
Installed Qty : No Cpu
Max Supported Qty: 4
Upgradability : Upgradable
Chipset Type : Amd Sr5690/Sp5100
RAM :
Installed Size : None
Max Supported Size : 1.50 Tb
Memory Slots : 48 Dimm Slots
Technology : Ddr3 Sdram, Advanced Ecc
For Factor : Dimm 240-Pin
ORANGE & STORAGE CONTROLLERS :
Hard Drive : None
Optical Drive : None
Storage Controller Type : 1 X Raid, Plug-In Card, Pci Express X8
Controller Interface Type : SAS Serial Attached Scsi 2
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn-50
Video Memory : 32 Mb
1600x1280x64k 16m Color
NETWORKING :
Networking : Network Adapter, Pci Express 2.0 X4, Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards :Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3az
