Refurbished 704160-001 Technical Specifications

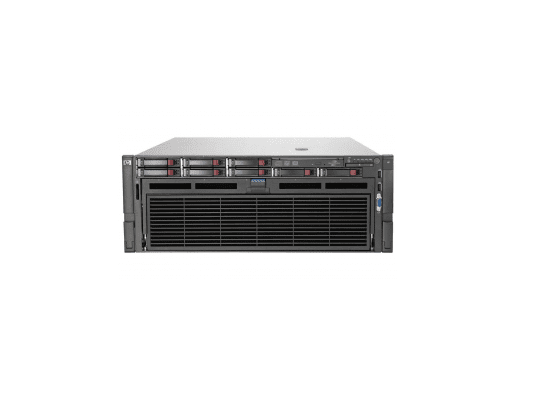

HP Proliant Dl585 G7 4x Amd Opteron 16 Core 6386es/2.8GHz 128GB Ddr3 Sdram 4x Gigabit Ethernet 4x 1200w Ps 4u Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 704160-001
Product Name : Proliant Dl585 Gen7 4u Rack Mount
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 16 Core 6386es/2.8ghz
Max Turbo Speed : 3.5 Ghz
Installed Qty : 4
Max Supported Qty : 4
Upgradability : Upgradable
64-Bit Processing : Yes
Processor Core : 16-Core
Chipset Type : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 64 Mb
Cache Per Processor : 16 Mb
Ram :
Installed Size : 128 Gb
Max Supported Size : 1.50 Tb
Technology : Ddr3 Sdram, Advanced Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 16 X 8 Gb
STORAGE & STORAGE CONTROLLERS :
Hard Drive : None Ship Standard Supports Up To (8) Sff Sas/Sata/Ssd Hot Plug Drives
Optical Drive : None Ship Standard
Internal Storage : Up To 8tb Of Internal Storage (Sff Sas)
Storage Controller Type : 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type : Sata 3gb/S / Sas 6gb/S
Storage Controller Type : 1 X Raid, Plug-In Card, Pci Express X8
Storage Controller Name : Smart Array P410i With 1gb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50
Buffer Size : 1 Gb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn-50
Video Memory : 32 Mb Ddr1 Memory
1600x1280x64k 16m Color
NETWORKING :
Networking : Network Adapter, Pci Express 2.0 X4, Integrated
Ethernet Ports : 4 X Gigabit Etherne
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards :Ieee802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3az
POWER DEVICE :
Power Device Type : Power Supply, Hot Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 4
Max Supported Qty : 4
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt
80 Plus Certification : 80 Plus Platinum
