6WM95 Technical Specifications

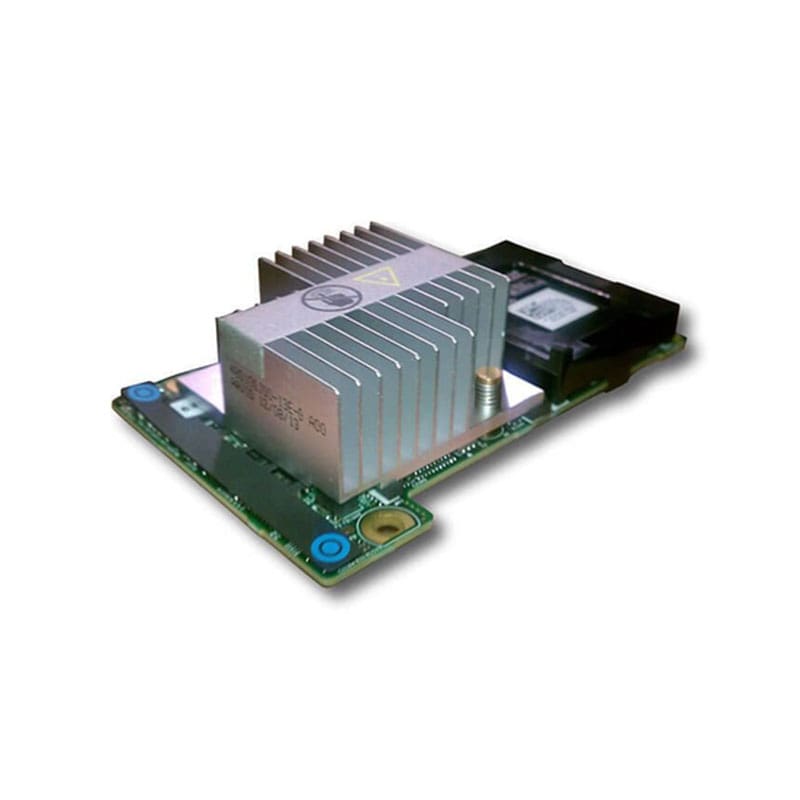

Dell Perc H710p Mini Blade Raid Controller W 1GB NV Cache 6GBps SAS, PCI-E 2.0 For Dell Poweredge 12th Gen Blades
Manufacturer : Dell
Model Number or SKU# 6WM95
Type : Controller
Sub-Type : SAS Controller
TECHNICAL SPECIFICATIONS
Models: PERC H710p
Interface: 6GB/S SAS
PCI Support : PCI-E 2.0
SAS Connectors : 2×4 Internal
Buffer Size: 1 GB
Write Back Cache: Flash Backed Cache
Data Transfer Rate: 600 Mbps
Supported Devices: Disk Array (Raid), Hard Drive, Solid State Drive
Channel Qty: 8
Raid Level: Raid 0, Raid 1, Raid 10, Raid 5, Raid 50, Raid 6, Raid 60
Host Bus: PCIE 2.0 X8
Max Operating Temperature: 140 °F
