6C189UT#ABA Technical Specifications

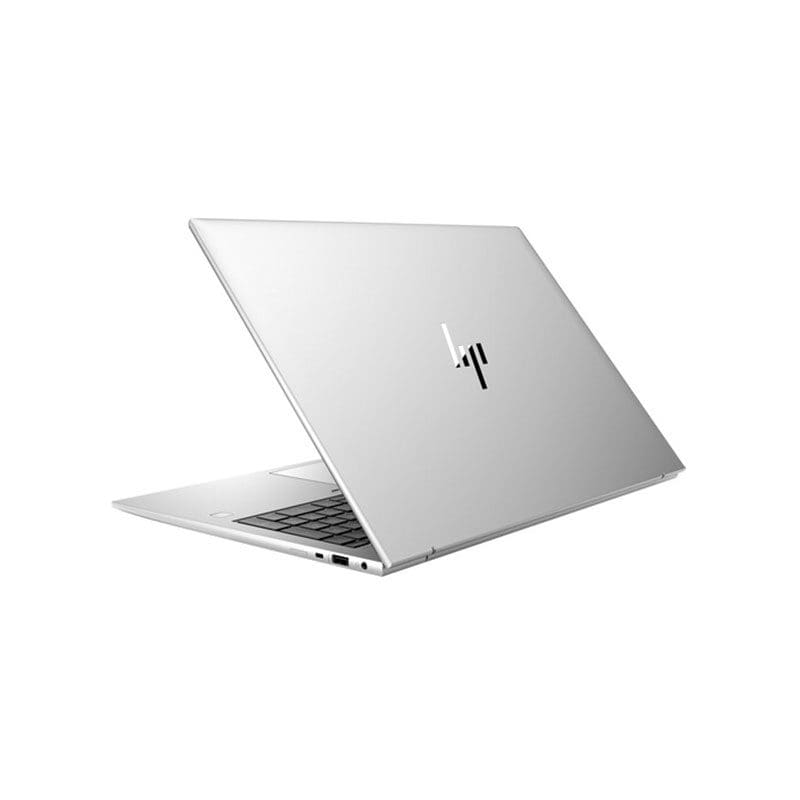

HP EliteBook 860 G9 Core i5-1245U 2x8GB 256GB PCIe OSR ax BT FR SC WC 16″ FHD+ W11P64DG
Manufacturer HP
Manufacturer Part # 6C189UT#ABA
Operating System Windows 11 Pro (64-Bit)
Performance
Processor Intel Core i5-1245U (12th Gen)
CPU Up to 4.4 GHz Performance Dual-Core
Up to 3.3 GHz Efficiency 8-Core
L3 Cache 12 MB
Graphics Type Integrated
GPU Intel Iris Xe
Memory Type 4800 MHz DDR5
Total Installed Memory 16 GB
Memory Configuration 2 x 8 GB (User-Replaceable)
Maximum Memory Capacity 64 GB
Memory Slot Type 262-Pin SO-DIMM
Memory Slots 2 (0 Available)
Buffered Memory No
ECC Memory No
Display
Panel Type IPS-Type LCD
Size 16″
Aspect Ratio 16:10
Resolution 1920 x 1200
Touchscreen No
Finish Anti-Glare / Matte
Maximum Brightness 250 cd/m2
Color Gamut 45% NTSC
Storage and Expansion
Total Installed Capacity 256 GB
Solid State Storage 1 x 256 GB M.2 NVMe PCIe
Optical Drive None
I/O
Ports 2 x USB-A 3.0 / 3.1/3.2 Gen 1
USB Type-C 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery)
Display 1 x HDMI 2.0
Audio I/O 1 x 1/8″ / 3.5 mm Headphone/Microphone Input/Output
Built-In Speakers 2
Built-In Microphones 2
Media/Memory Card Slot None
Communications
Ethernet None
Wi-Fi Wi-Fi 6E (802.11ax)
MU-MIMO Support 2 x 2
Bluetooth 5.2
GPS None
NFC Yes
Webcam User-Facing: 5 MP
Battery
Battery Chemistry Lithium-Ion Polymer (LiPo)
Capacity 3-Cell: 51 Wh
Keyboard & Mouse
Keyboard Notebook Keyboard with Number Pad, Touch Bar
Pointing Device TouchPad
