69Y1217 Technical Specifications

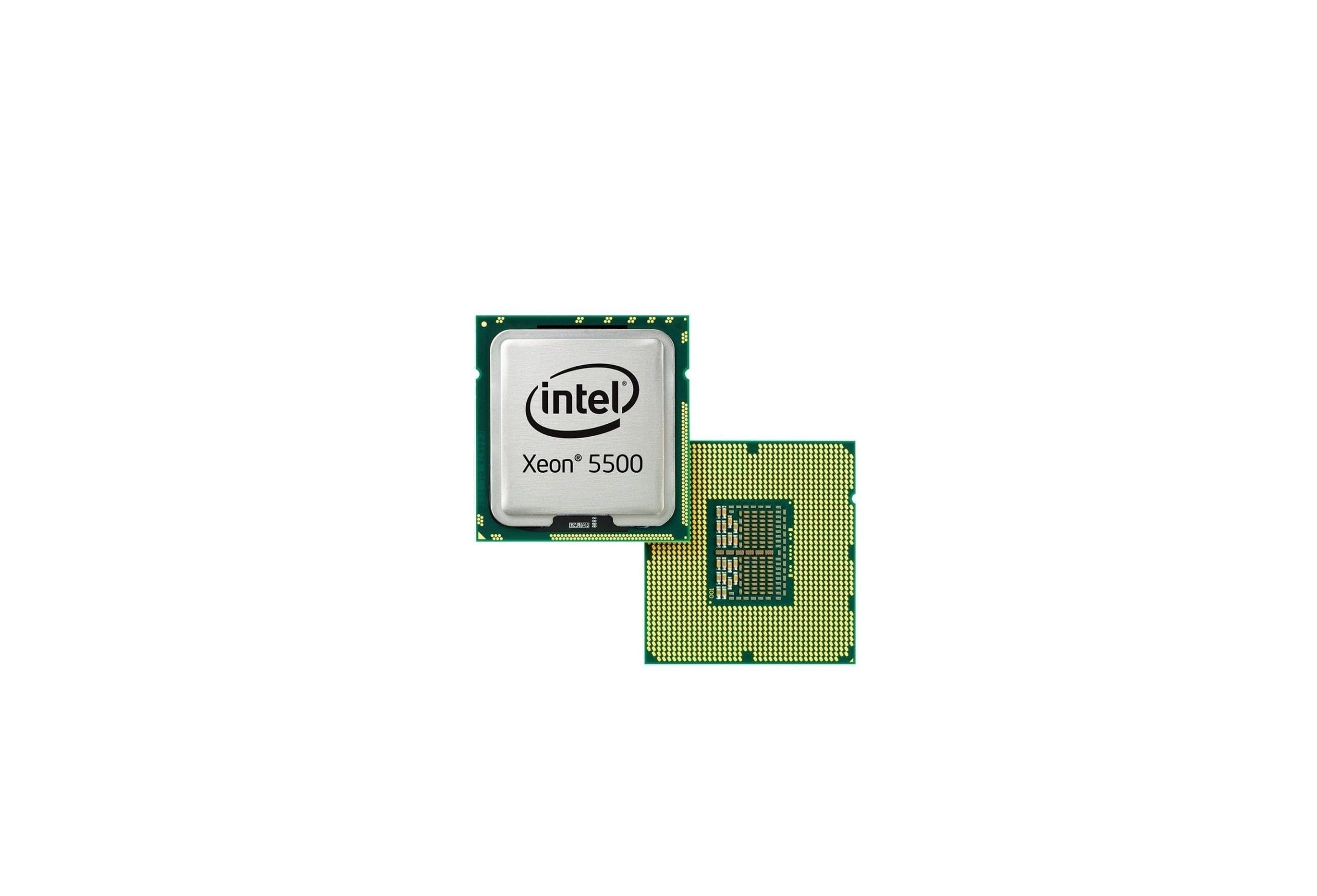

IBM 2.13GHz 4.80GT/s QPI 4MB L3 Cache Intel Xeon E5506 Quad Core Processor Upgrade
Brand Intel
Part No. 69Y1217
Processor Type Server
Series Xeon Processor
Core Model Type/ProcNo. E5506
Processor Code Name Nehalem EP
Core Stepping D0
Manufacturing Technology 45 nm
CPU ID String 106A5
# of Cores 4
# of Threads 4
Clock Speed 2.13 GHz
L3 Cache Size 4 MB
Front Side Bus / QuickPath Interconnect 4.80 GT/s QPI
Thermal Power 80 Watts
VID Voltage Range 0.75V -1.35V
CPU Socket Type LGA 1366
Product Condition OEM
