699765-001 Technical Specifications

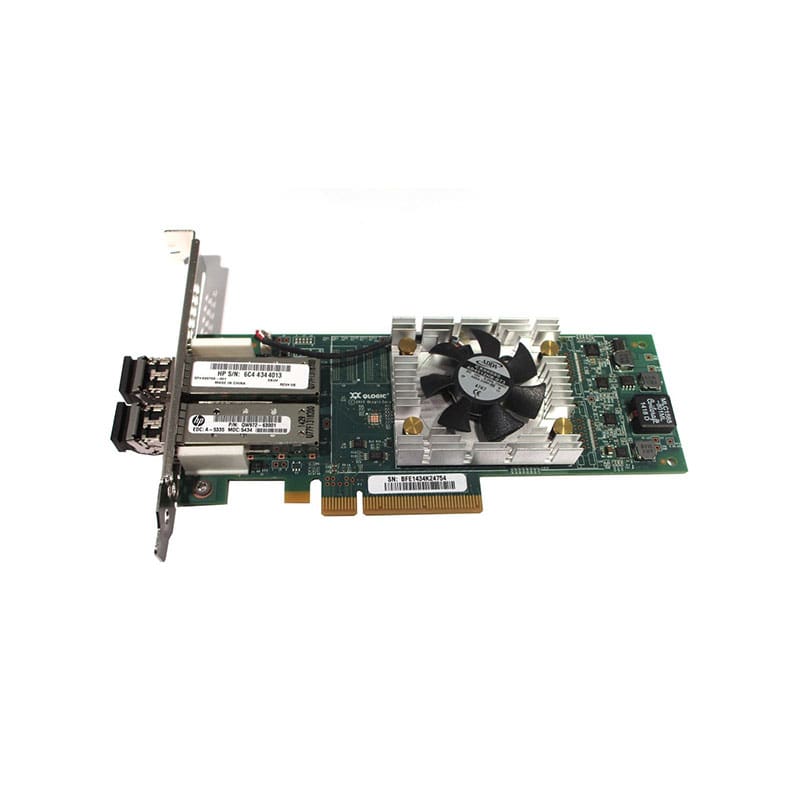

HP StoreFabric SN1000Q 16GB 2-Port PCI-E Fibre Channel Host Bus Adapter
Manufacturer: HP
Model Number or SKU# 699765-001
Product Type: Host Bus Adapter
Product Name: Controller
Technical Information
Interface (Bus) Type: PCI Express x4
Networking
Ports: 2 x 16GB Fibre Channel
Connectivity Technology: Wired
Data Link Protocol: 16GB Fibre Channel (SW)
Media: Multi-mode Optic (SFP+)
Auto-negotiation: 16/8/4 GBPS
Features: Dual Channel Auto-negotiation
Expansion / Connectivity
Interfaces: 2 x 16Gb Fibre Channel (Short Wave) – LC multi-mode x 2
Slot Type Supported: PCI Express 3.0 to Fibre Channel
Connector: Short wave laser with LC-type connector
PCIe Connector: PCIe 3.0 x8
Brackets: Shipped with both half-height and full-height brackets
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 – 90% (non-condensing)
